Three phase asynchronous motor

Current Location: Home>PRODUCTS

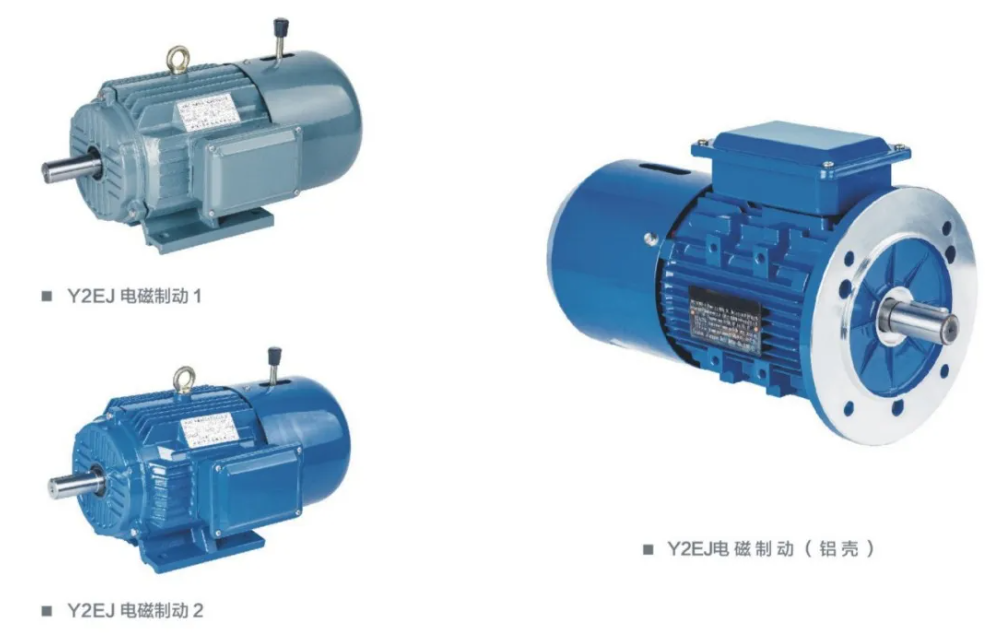

Y2EJ SERIES ELECTROMAGNETIC BRAKE THREE-PHASE ASYNCHRONOUS MOTOR

Feature description

The Y2EJ series electromagnetic braking motors are fully enclosed self-ventilated squirrel-cage three-phase asynchronous motors. Designed according to IEC standards, these motors feature high starting torque, compact structure, rapid braking, reliable operation, high efficiency, energy conservation, and low noise. In addition, the motors are equipped with a manual release structure, allowing for both electromagnetic braking and manual operation, which is convenient for users during debugging and operation.

The Y2EJ series electromagnetic braking motors are suitable as power sources for various mechanical equipment that require rapid stopping, accurate positioning, repeated operation, frequent starting, and prevention of sliding, such as elevators, reducers, conveyors, packaging machines, food processing machines, and printing machines.

Principle and Structure: The DC disc brake of the Y2EJ series electromagnetic braking motor is installed on the non-shaft extension end of the motor. When the motor is connected to the power supply, the brake starts to work. Under the action of electromagnetic attraction, the electromagnet attracts the armature and compresses the spring. As a result, the brake disc disengages from the armature and the end cover, and the motor starts to run. When the power supply is cut off, the electromagnet of the brake loses its attraction, and the spring pushes the armature to press the brake disc. Under the action of friction, the motor stops immediately. There are two types of brakes: energized brakes and de-energized brakes. The working principles of the two types of brakes are the same, but the braking processes are opposite.

The Y2EJ series motors can be derived into the YDEJ series multi-speed braking motors and the YVF2EJ series variable-frequency braking motors.


Y2EJ series motor technical parameters

Model Rated Output Full Load Rated Torque
(Tn) 		Rated Torque Rated Torque Rated Current Static Braking Torque Weight Brake Power
Speed Input Current Efficiency Power Factor
KW HP RPM Amp η% Cosφ N.m Tst/Tn Tmax/
Tn 		st/In N.m S W
Y2EJ-801-2 0.75 1 2830 1.8 75 0.83 2.53 2.2 2.3 6.1 7.5 0.20 40
Y2EJ-802-2 1.1 1.5 2830 2.53 76.2 0.84 3.71 2.2 2.3 7.0 7.5 0.20 40
Y2EJ-90S-2 1.5 2 2840 3.34 78.5 0.84 5.03 2.2 2.3 7.0 15 0.20 50
Y2EJ-90L-2 2.2 3 2840 4.73 81 0.85 7.38 2.2 2.3 7.0 15 0.20 50
Y2EJ-100L-2 3 4 2870 6.19 82.6 0.87 9.96 2.2 2.3 7.5 30 0.20 65
Y2EJ-112M-2 4 5.5 2890 8.05 84.2 0.88 13.24 2.2 2.3 7.5 40 0.25 70
Y2EJ-132S1-2 5.5 7.5 2890 10.9 85.7 0.88 18.09 2.2 2.3 7.5 75 0.25 95
Y2EJ-132S2-2 7.5 10 2890 14.5 87 0.88 24.66 2.2 2.3 7.5 75 0.25 95
Y2EJ-160M1-2 11 15 2930 21 88.4 0.89 35.81 2.2 2.3 7.5 150 0.35 110
Y2EJ-160M2-2 15 20 2930 28.4 89.4 0.89 48.84 2.2 2.2 7.5 150 0.35 110
Y2EJ-160L-2 18.5 25 2930 34.7 90 0.90 60.24 2.2 2.2 7.5 150 0.35 110
Y2EJ-180M-2 22 30 2940 41.1 90.5 0.90 71.38 2.0 2.2 7.5 200 0.35 150
Y2EJ-200L1-2 30 40 2950 55.7 91.4 0.90 97.04 2.0 2.2 7.5 300 0.45 200
Y2EJ-200L2-2 37 50 2950 68.3 92 0.90 119.7 2.0 2.2 7.5 300 0.45 200
Y2EJ-225M-2 45 60 2970 82.7 92.5 0.90 145.1 2.0 2.2 7.5 450 0.45 200

Y2EJ series motor technical parameters

Model Rated Output Full Load Rated
Torque(Tn) 		Rated torque
 Rated torque
 Rated current
 Static
braking
torque 		Weight Brake
Power
Speed Input
Current 		Efficiency Power
Factor
KW HP RPM Amp n% Cos中 N.m Tst/Tn Tmax/
Tn 		st/In N.m S W
Y2EJ-801-4 0.55 0.75 1390 1.57 71 0.75 3.77 2.4 2.3 5.2 7.5 0.20 40
Y2EJ-802-4 0.75 1 1390 1.88 73 0.76 5.13 2.3 2.3 6.0 7.5 0.20 40
Y2EJ-90S-4 1.1 1.5 1400 2.67 76.2 0.77 7.48 2.3 2.3 6.0 15 0.20 50
Y2EJ-90L-4 1.5 2 1400 3.53 78.5 0.79 10.20 2.3 2.3 6.0 15 0.20 50
Y2EJ-100L1-4 2.2 3 1430 4.96 81 0.81 14.75 2.3 2.3 7.0 30 0.20 65
Y2EJ-100L2-4 3 4 1430 6.58 82.6 0.82 20.12 2.3 2.3 7.0 30 0.20 65
Y2EJ-112M-4 4 5.5 1440 8.66 84.2 0.82 26.47 2.3 2.3 7.0 40 0.25 70
Y2EJ-132S-4 5.5 7.5 1440 11.6 85.7 0.83 36.40 2.3 2.3 7.0 75 0.25 95
Y2EJ-132M-4 7.5 10 1440 15.5 87 0.84 49.63 2.3 2.3 7.0 75 0.25 95
Y2EJ-160M-4 11 15 1460 22.4 88.4 0.84 71.85 2.2 2.3 7.0 150 0.35 110
Y2EJ-160L-4 15 20 1460 29.9 89.4 0.85 97.97 2.2 2.2 7.5 150 0.35 110
Y2EJ-180M-4 18.5 25 1470 36.3 90 0.86 120. 2.2 2.2 7.5 200 0.35 150
Y2EJ-180L-4 22 30 1470 42.9 90.5 0.86 143.2 2.2 2.2 7.5 200 0.35 150
Y2EJ-200L-4 30 40 1470 58.1 91.4 0.86 194.7 2.2 2.2 7.2 300 0.45 200
Y2EJ-225S-4 37 50 1480 70.5 92 0.87 239.4 2.2 2.2 7.2 450 0.45 200
Y2EJ-225M-4 45 60 1480 85.4 92.5 0.87 291.1 2.2 2.2 7.2 450 0.45 200

Y2EJ series motor technical parameters

Model Rated Output Full Load Rated
Torque(Tn) 		Rated torque Rated torque Rated current Static
braking
torque 		Weight Brake
Power
Speed Input
Current 		Efficiency Power
Factor
KW HP RPM Amp n% Cos中 N.m Tst/Tn Tmax/
Tn 		st/In N.m S W
Y2EJ-801-4 0.55 0.75 1390 1.57 71 0.75 3.77 2.4 2.3 5.2 7.5 0.20 40
Y2EJ-802-4 0.75 1 1390 1.88 73 0.76 5.13 2.3 2.3 6.0 7.5 0.20 40
Y2EJ-90S-4 1.1 1.5 1400 2.67 76.2 0.77 7.48 2.3 2.3 6.0 15 0.20 50
Y2EJ-90L-4 1.5 2 1400 3.53 78.5 0.79 10.20 2.3 2.3 6.0 15 0.20 50
Y2EJ-100L1-4 2.2 3 1430 4.96 81 0.81 14.75 2.3 2.3 7.0 30 0.20 65
Y2EJ-100L2-4 3 4 1430 6.58 82.6 0.82 20.12 2.3 2.3 7.0 30 0.20 65
Y2EJ-112M-4 4 5.5 1440 8.66 84.2 0.82 26.47 2.3 2.3 7.0 40 0.25 70
Y2EJ-132S-4 5.5 7.5 1440 11.6 85.7 0.83 36.40 2.3 2.3 7.0 75 0.25 95
Y2EJ-132M-4 7.5 10 1440 15.5 87 0.84 49.63 2.3 2.3 7.0 75 0.25 95
Y2EJ-160M-4 11 15 1460 22.4 88.4 0.84 71.85 2.2 2.3 7.0 150 0.35 110
Y2EJ-160L-4 15 20 1460 29.9 89.4 0.85 97.97 2.2 2.2 7.5 150 0.35 110
Y2EJ-180M-4 18.5 25 1470 36.3 90 0.86 120. 2.2 2.2 7.5 200 0.35 150
Y2EJ-180L-4 22 30 1470 42.9 90.5 0.86 143.2 2.2 2.2 7.5 200 0.35 150
Y2EJ-200L-4 30 40 1470 58.1 91.4 0.86 194.7 2.2 2.2 7.2 300 0.45 200
Y2EJ-225S-4 37 50 1480 70.5 92 0.87 239.4 2.2 2.2 7.2 450 0.45 200
Y2EJ-225M-4 45 60 1480 85.4 92.5 0.87 291.1 2.2 2.2 7.2 450 0.45 200

Y2EJ series motor technical parameters

Model Rated Output Full Load Rated
Torque(Tn) 		Rated torque Rated torque
 		Rated current
 		Static
braking
torque 		Weight Brake
Power
Speed Input
Current 		Effidiency Power
Factor
KW HP RPM Amp η% Cosφ N.m Tst/Tn Tmax/
Tn 		Ist/In N.m S W
Y2EJ-90L-8 0.55 0.75 660 2.17 63 0.61 7.96 1.8 2.0 4.0 15 0.2 50
Y2EJ-100L1-8 0.75 1 690 2.4 71 0.67 10.40 1.8 2.0 4.0 30 0.2 65
Y2EJ-100L2-8 1.1 1.5 690 3.32 73 0.69 15.2 1.8 2.0 5.0 30 0.2 65
Y2EJ-112M-8 1.5 2 700 4.4 75 0.69 20.5 1.8 2.0 5.0 40 0.25 70
Y2EJ-132S-8 2.2 3 710 6.04 78 0.71 29.60 2.0 2.0 5.5 75 0.25 95
Y2EJ-132M-8 3 4 710 7.9 79 0.72 40.40 2.0 2.0 5.5 75 0.25 95
Y2EJ-160M1-8 4 5.5 720 10.3 81 0.73 53.10 2.0 2.0 6.0 150 0.35 110
Y2EJ-160M2-8 5.5 7.5 720 13.6 83 0.74 73.00 2.0 2.0 6.0 150 0.35 110
Y2EJ-160L-8 7.5 10 720 17.8 85.5 0.75 99.50 2.0 2.0 5.5 150 0.35 110
Y2EJ-180L-8 11 15 730 25.1 87.5 0.77 143.9 1.7 2.0 6.0 200 0.35 150
Y2EJ-200L-8 15 20 730 34.1 88 0.76 196.2 1.8 2.0 6.0 300 0.45 200
Y2EJ-225S-8 18.5 25 730 41.1 90 0.76 242.0 1.7 2.0 6.0 450 0.45 200
Y2EJ-225M-8 22 30 730 47.4 90.5 0.78 287.8 1.8 2.0 6.0 450 0.45 200
