YE2 SERIES HIGH EFFICIENCY THREE-PHASE ASYNCHRONOUS MOTOR

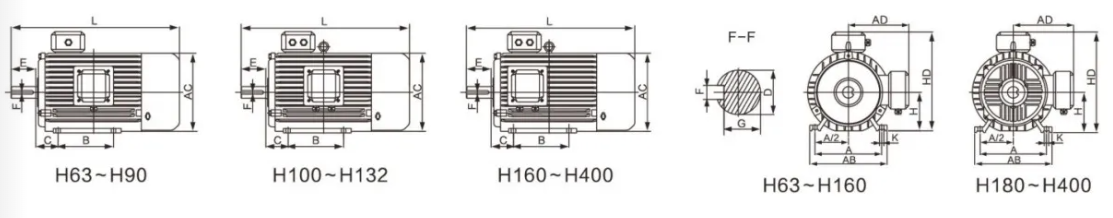

Installation size and external size table of YE2 series B3

Type Poles Mounting Dimensions Overall Dimensions
A A/2 B C D E F G H K AB AC AD HD L
63 24 100 50 80 40 11 23 4 8.5 63 7 135 130 70 180 230
71 2,4,6 112 56 90 45 14 30 5 11 71 7 150 145 80 195 255
80 2,4,6,8 125 62.5 100 50 19 40 6 15.5 80 10 165 175 145 220 295
90S 2,4,6,8 140 70 100 56 24 50 8 20 90 10 180 195 155 250 320
90L 2,4,6,8 140 70 125 56 24 50 8 20 90 10 180 195 155 250 345
100L 2,4,6,8 160 80 140 63 28 60 8 24 100 12 205 215 180 270 385
112M 2,4,6,8 190 95 140 70 28 60 8 24 112 12 230 240 190 300 400
132S 2,4,6,8 216 108 140 89 38 80 10 33 132 12 270 275 210 345 470
132M 4,6,8 216 108 178 89 38 80 10 33 132 12 270 275 210 345 510
160M 2,4,6,8 254 127 210 108 42 110 12 37 160 14.5 320 330 255 420 615
160L 2,4,6,8 254 127 254 108 42 110 12 37 160 14.5 320 330 255 420 670
180M 2,4,6,8 279 139.5 241 121 48 110 14 42.5 180 15 355 380 280 455 700
180L 4,6,8 279 139.5 279 121 48 110 14 42.5 180 15 355 380 280 455 740
200L 2,4,6,8 318 159 305 133 55 110 16 49 200 19 395 420 305 505 770
225S 48 356 178 286 149 60 140 18 53 225 19 435 470 335 560 815
225M 2 356 178 311 149 55 110 16 49 225 19 435 470 335 560 820
4,6,8 356 178 311 149 60 140 18 53 225 19 435 470 335 560 845
250M 2 406 203 349 168 60 140 18 53 250 24 490 510 370 615 910
4,6,8 406 203 349 168 65 140 18 58 250 24 490 510 370 615 910
280S 2 457 228.5 368 190 65 140 18 58 280 24 550 580 410 680 985
4,6,8 457 228.5 368 190 75 140 20 67.5 280 24 550 580 410 680 985
280M 2 457 228.5 419 190 65 140 18 58 280 24 550 580 410 680 1035
4,6,8 457 228.5 419 190 75 140 20 67.5 280 24 550 580 410 680 1035
315S 2 508 254 406 216 65 140 18 58 315 28 635 645 530 845 1240
4,6,8,10 508 254 406 216 80 170 22 71 315 28 635 645 530 845 1270
315M 2 508 254 457 216 65 140 18 58 315 28 635 645 530 845 1350
4,6,8,10 508 254 457 216 80 170 22 71 315 28 635 645 530 845 1380
315L 2 508 254 508 216 65 140 18 58 315 28 635 645 530 845 1350
4,6,8,10 508 254 508 216 80 170 22 71 315 28 635 645 530 845 1380
355M 2 610 305 560 254 75 140 20 67.5 355 28 730 710 655 1010 1500
4,6,8,10 610 305 560 254 95 170 25 86 355 28 730 710 655 1010 1530
355L 2 610 305 630 254 75 140 20 67.5 355 28 730 710 655 1010 1500
4,6,8,10 610 305 630 254 95 170 25 86 355 28 730 710 655 1010 1530
400 2 686 343 710 280 85 170 22 76 400 35 806 850 - 1090 1880
4,6,8,10 686 343 710 280 110 210 28 100 400 35 806 850 - 1090 1920

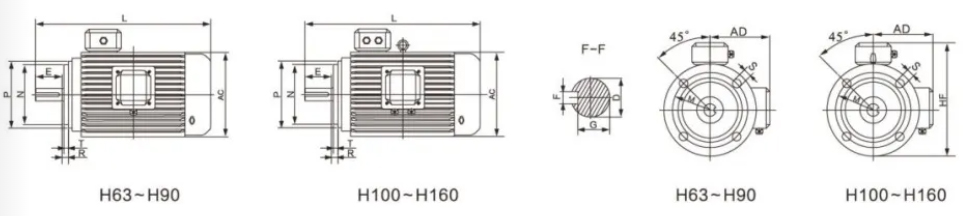

YE2 B5 and V1 installation size and external size table

Model Poles Mounting Dimensions Overall Dimensions
D E F G M N P R S T
AC AD HF L
Fange holes B5/V1 B5 V1
63 24 11 23 4 8.5 115 95 140 0 10 3 4 130 70 130 230 -
71 2,4,6 14 30 5 11 130 110 160 0 10 3.5 4 145 80 145 255 -
80 2,4,6,8 19 40 6 15.5 165 130 200 0 12 3.5 4 175 145 185 295 -
90S 2,4,6,8 24 50 8 20 165 130 200 0 12 3.5 4 195 155 195 320 -
90L 2,4,6,8 24 50 8 20 165 130 200 0 12 3.5 4 195 155 195 345 -
100L 2,4,6,8 28 60 8 24 215 180 250 0 14.5 4 4 215 180 245 385 -
112M 2,4,6,8 28 60 8 24 215 180 250 0 14.5 4 4 240 190 265 400 -
132S 2,4,6,8 38 80 10 33 265 230 300 0 14.5 4 4 275 210 315 470 -
132M 4,6,8 38 80 10 33 265 230 300 0 14.5 4 4 275 210 315 510 -
160M 2,4,6,8 42 110 12 37 300 250 350 0 18.5 5 4 330 255 385 615 -
160L 2.4,6,8 42 110 12 37 300 250 350 0 18.5 5 4 330 255 385 670 -
180M 2,4,6,8 48 110 14 42.5 300 250 350 0 18.5 5 4 380 280 430/500 700 760
180L 4,6,8 48 110 14 42.5 300 250 350 0 18.5 5 4 380 280 430/500 740 800
200L 2,4,6,8 55 110 16 49 350 300 400 0 18.5 5 4 420 305 480/550 770 840
225S 48 60 140 18 53 400 350 450 0 18.5 5 8 470 335 535/610 815 905
225M 2 55 110 16 49 400 350 450 0 18.5 5 8 470 335 535/610 820 910
4,6,8 60 140 18 53 400 350 450 0 18.5 5 8 470 335 535/610 845 935
250M 2 60 140 18 53 500 450 550 0 18.5 5 8 510 370 595/650 910 1015
4,6,8 65 140 18 58 500 450 550 0 18.5 5 8 510 370 595/650 910 1015
280S 2 65 140 18 58 500 450 550 0 18.5 5 8 580 410 650/720 650/720 985 1110
4,6,8 75 140 20 67.5 500 450 550 0 18.5 5 8 580 410 985 1110
280M 2 65 140 18 58 500 450 550 0 18.5 5 8 580 410 650/720 650/720 1035 1150
4,6,8 75 140 20 67.5 500 450 550 0 18.5 5 8 580 410 1035 1150
315S 2 65 140 18 58 600 550 660 0 0 24 6 8 645 530 900 - 1360
4,6,8,10 80 170 22 71 600 550 660 24 6 8 645 530 900 - 1390
315M 2 65 140 18 58 600 550 660 0 0 24 6 8 645 530 900 - 1470
4,6,8,10 80 170 22 71 600 550 660 24 6 8 645 530 900 - 1510
315L 2 65 140 18 58 600 550 660 0 0 24 6 8 645 530 900 - 1470
4,6,8,10 80 170 22 71 600 550 660 24 6 8 645 530 900 - 1510
355M 2 75 140 20 67.5 740 680 800 0 0 24 6 8 710 655 1010 - 1640
4,6,8,10 95 170 25 86 740 680 800 24 6 8 710 655 1010 - 1670
355L 2 75 140 20 67.5 740 680 800 0 24 6 8 710 655 1010 - 1640
4,6,8,10 95 170 25 86 740 680 800 0 24 6 8 710 655 1010 - 1670

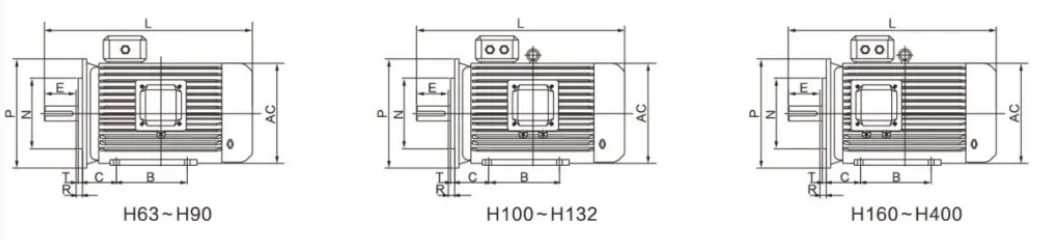

Installation size and external size table of YE2B14
Type Poles Mounting Dimensions Overall Dimensions
D E F G M N P R S T AC AD HF L
63 24 11 23 4 8.5 75 60 90 0 4XM5 2.5 130 70 130 230
71 2,4,6 14 30 5 11 85 70 105 0 4XM6 2.5 145 80 145 255
80 2,4,6,8 19 40 6 15.5 100 80 120 0 4XM6 3.0 175 145 185 295
90S 2,4,6,8 24 50 8 20 115 95 140 0 4XM8 3.0 195 155 195 320
9OL 2,4,6,8 24 50 8 20 115 95 140 0 4XM8 3.0 195 155 195 345
100L 2,4,6,8 28 60 8 24 130 110 160 0 4XM8 3.5 215 180 245 385
112M 2,4,6,8 28 60 8 24 130 110 160 0 4XM8 3.5 240 190 265 400
132S 2,4,6,8 38 80 10 33 165 130 200 0 4XM10 3.5 275 210 315 470
132M 4,6,8 38 80 10 33 165 130 200 0 4XM10 3.5 275 210 315 510
160M 2,4,6,8 42 110 12 37 215 180 250 0 4XM12 4.0 330 255 385 615
160L 2,4,6,8 42 110 12 37 215 180 250 0 4XM12 4.0 330 255 385 670


YE2 B5 and V1 installation form factor table


YE2 B14 Installation Dimensions Table

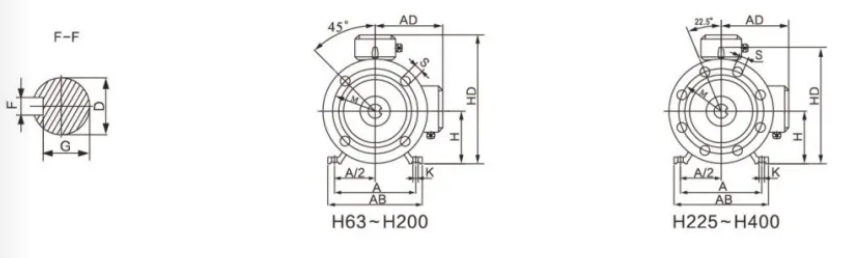

Installation size table of YE2 B35

Type Poles Mounting Dimensions
A A/2 B C D E F G H K
63 24 100 50 80 40 11 23 4 8.5 63 7
71 2,4,6 112 56 90 45 14 30 5 11 71 7
80 2,4,6,8 125 62.5 100 50 19 40 6 15.5 80 10
90S 2,4,6,8 140 70 100 56 24 50 8 20 90 10
90L 2,4,6,8 140 70 125 56 24 50 8 20 90 10
100L 2,4,6,8 160 80 140 63 28 60 8 24 100 12
112M 2,4,6,8 190 95 140 70 28 60 8 24 112 12
132S 2,4,6,8 216 108 140 89 38 80 10 33 132 12
132M 4,6,8 216 108 178 89 38 80 10 33 132 12
160M 2,4,6,8 254 127 210 108 42 110 12 37 160 14.5
160L 2,4,6,8 254 127 254 108 42 110 12 37 160 14.5
180M 2,4,6,8 279 139.5 241 121 48 110 14 42.5 180 14.5
180L 4,6,8 279 139.5 279 121 48 110 14 42.5 180 14.5
200L 2,4,6,8 318 159 305 133 55 110 16 49 200 18.5
225S 48 356 178 286 149 60 140 18 53 225 18.5
225M 2
4,6,8 		356
356 		178
178 		311
311 		149
149 		55
60 		110
140 		16
18 		49
53 		225
225 		18.5
18.5
250 2
4,6,8 		406
406 		203
203 		349
349 		168
168 		60
65 		140
140 		18
18 		53
58 		250
250 		24
24
280S 2
4,6,8 		457
457 		228.5
228.5 		368
368 		190
190 		65
75 		140
140 		18
20 		58
67.5 		280
280 		24
24
280M 2
4,6,8 		457
457 		228.5
228.5 		419
419 		190
190 		65
75 		140
140 		18
20 		58
67.5 		280
280 		24
24
315S 2
4,6,8,10 		508
508 		254
254 		406
406 		216
216 		65
80 		140
170 		18
22 		58
71 		315
315 		28
28
315M 2
4,6,8,10 		508
508 		254
254 		457
457 		216
216 		65
80 		140
170 		18
22 		58
71 		315
315 		28
28
315L 2
4,6,8,10 		508
508 		254
254 		508
508 		216
216 		65
80 		140
170 		18
22 		58
71 		315
315 		28
28
355M 2
4,6,8,10 		610
610 		305
305 		560
560 		254
254 		75
95 		140
170 		20
25 		67.5
86 		355
355 		28
28
355L 2
4,6,8,10 		610
610 		305
305 		630
630 		254
254 		75
95 		140
170 		20
25 		67.5
86 		355
355 		28
28
400 2
4,6,8,10 		686
686 		343
343 		710
710 		280
280 		85
110 		170
210 		22
28 		76
100 		400
400 		35
35

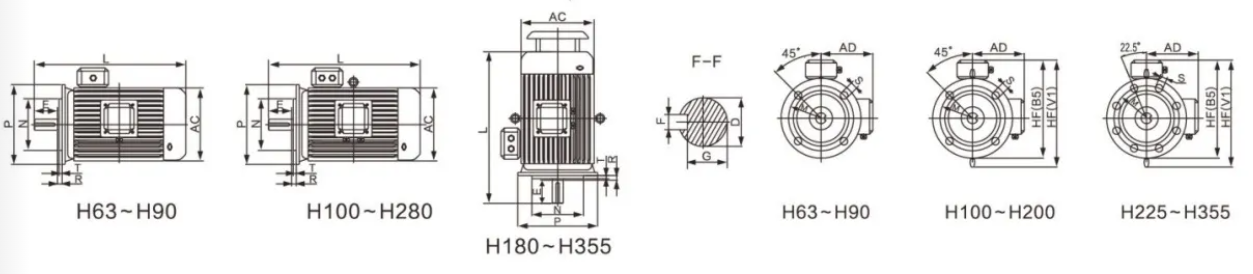

Installation size and external size table of YE2B35

安装尺寸Mounting Dimensions 外形尺寸Overall
M N P R S T 法兰孔数
Fange
holes 		AB AC AD HD L
115 95 140 0 10 3 4 135 130 70 180 230
130 110 160 0 10 3.5 4 150 145 80 195 255
165 130 200 0 12 3.5 4 165 175 145 220 295
165 130 200 0 12 3.5 4 180 195 155 250 320
165 130 200 0 12 3.5 4 180 195 155 250 345
215 180 250 0 14.5 4 4 205 215 180 270 385
215 180 250 0 14.5 4 4 230 240 190 300 400
265 230 300 0 14.5 4 4 270 275 210 345 470
265 230 300 0 14.5 4 4 270 275 210 345 510
300 250 350 0 18.5 5 4 320 330 255 420 615
300 250 350 0 18.5 5 4 320 330 255 420 670
300 250 350 0 18.5 5 4 355 380 280 455 700
300 250 350 0 18.5 5 4 355 380 280 455 740
350 300 400 0 18.5 5 4 395 420 305 505 770
400 350 450 0 18.5 5 8 435 470 335 560 815
400

400 		350

350 		450

450 		0

0 		18.5

18.5 		5

5 		8

8 		435

435 		470

470 		335

335 		560

560 		820

845
500

500 		450

450 		550

550 		0

0 		18.5

18.5 		5

5 		8

8 		490

490 		510

510 		370

370 		615 910

910
615
500

500 		450

450 		550

550 		0

0 		18.5

18.5 		5

5 		8

8 		550

550 		580

580 		410

410 		680

680 		985
985
500 450

450 		550 0 18.5

18.5 		5 8 550

550 		580

580 		410 680 1035

1035
500 550 0 5 8 410 680
600

600 		550

550 		660

660 		0

0 		24

24 		6

6 		8

8 		635

635 		645

645 		530

530 		845

845 		1240

1270
600

600 		550

550 		660

660 		0

0 		24

24 		6

6 		8

8 		635

635 		645

645 		530

530 		845

845 		1350

1380
600

600 		550

550 		660

660 		0

0 		24

24 		6

6 		8

8 		635

635 		645

645 		530

530 		845

845 		1350

1380
740

740 		680

680 		800

800 		0

0 		24

24 		6 8 730 710 655 1010 1500
6 8 730 710 655 1010 1530
740

740 		680

680 		800

800 		0

0 		24

24 		6

6 		8

8 		730

730 		710

710 		655

655 		1010

1010 		1500

1530
940 880 1000 0 28 6 8 806 850 - 1090 1880
940 880 1000 0 28 6 8 806 850 - 1090 1920

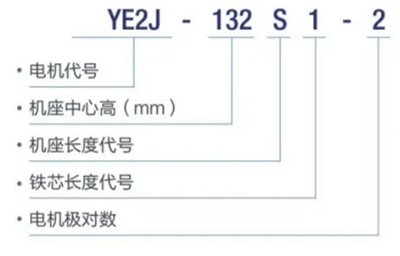

Y2EJ series motor product coding rules
The model of the motor product adopts a coding system, which makes it easy for you to identify all series of products.

  • Motor Model Explanation:

    National Standard and European Standard Grade Description: Refer to the tables on pages 68 and 69.
    Motor Bearing Number Model Table: Refer to the table on page 70.
    CNS Standard Three - Phase Motor Inspection Standard: Refer to the table on page 72.
    Motor Full - Load Current Table: Refer to the table on page 73.

  • Installation Methods:

    • IMB3
    • IMB5
    • IMB6
    • IMB7
    • IMB8
    • IMB14
    • IMB34
    • IMB35
    • IMV1
    • IMV3
    • IMV5
    • IMV6
    • IMV15
    • IMV17
    • IMV18
    • IMV19
    • IMV35
    • IMV37

    Installation Methods: Specified by the International Electrotechnical Commission IEC 60034 - 7 Standard.
    Refer to the table on page 71.

  • Operating Conditions:
    Operating Conditions
    Ambient Temperature: - 15°C to 40°C
    Altitude: Not exceeding 1000 meters
    Rated Voltage: 380V, 400V, 415V
    Rated Frequency: 50Hz, 60Hz
    Connection: Motors with a rated power of 3kW and below are Y - connected.
    Motors with a rated power of 4kW and above are Δ - connected.
    Duty Cycle: Continuous duty (S1)
    Protection Class: IP54/IP55
    Insulation Class: Class B/Class F
    Cooling Method: IC411

  • Product Features:
About UsNewsContact Us
Su ICP 2025168860-1

COPYRIGHT © Wuxi Morinda Electric Motor Manufacturing Co., Ltd., the copyright belongs to the company, without authorization, any other company or individual is not allowed to copy, plagiarize!
