Three phase permanent magnet synchronous motor

Feature Description

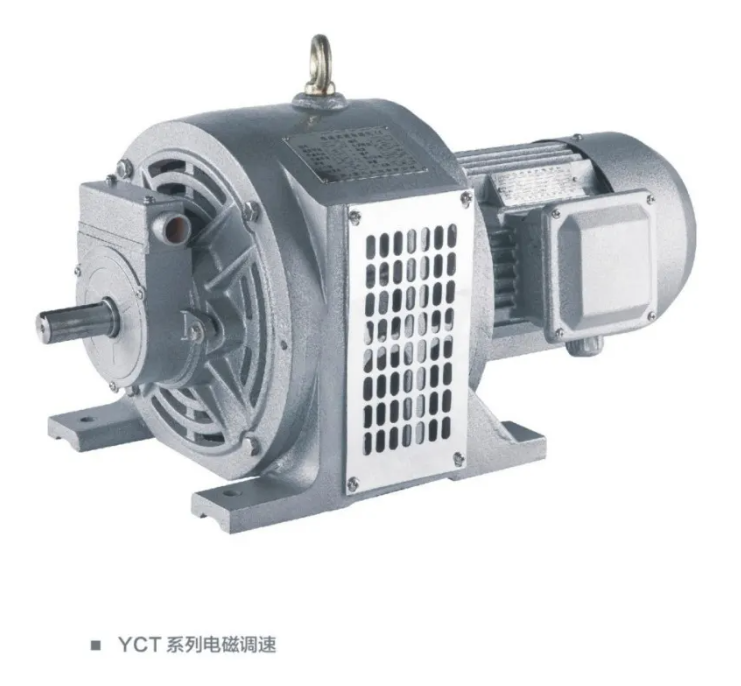

The YCT series electromagnetic speed - regulating motors are reliable speed - regulating devices. They can perform uniform, continuous, and stepless speed regulation within the specified range and output the rated torque. The speed variation is less than 3%. They have the characteristics of simple structure, convenient use, large starting torque, smooth starting, and a wide speed - regulating range.

YCT series electromagnetic speed control motor technical parameters

Frame size		Nominal power Kilowatt (KW)	Rated torque Newton - meter N.m	Speed regulation range Revolutions per minute r/min	Speed change rate Not more than %
YCT90	-4A	0.25	1.6	1200~120	2.5
	-4B	0.37	2.3
YCT112	-4A	0.55	3.6	1230~125
	-4B	0.75	4.9
YCT132	-4A	1.1	7.1	1230-125
	-4B	1.5	9.7
YCT160	-4A	2.2	14.1	1250-125
	-4B	3.0	19.2
YCT180	-4A	4.0	25.2	1250~125
YCT200	-4A	5.5	36.1	1250~125
	-4B	7.5	47.7
YCT225	-4A	11	69	1250~125
	-4B	15	94
YCT250	-4A	18.5	110	1320~132
	-4B	22	137
YCT280	-4A	30	189	1320-132
YCT315	-4A	37	232	1320~132
	-4B	45	282
YCT355	-4A	55	344	1340~440
	-4B	75	469
	-4C	90	564	1340~600
YCTD355	-4A	110	690	1350~650
	-4B	132	827	1350~650

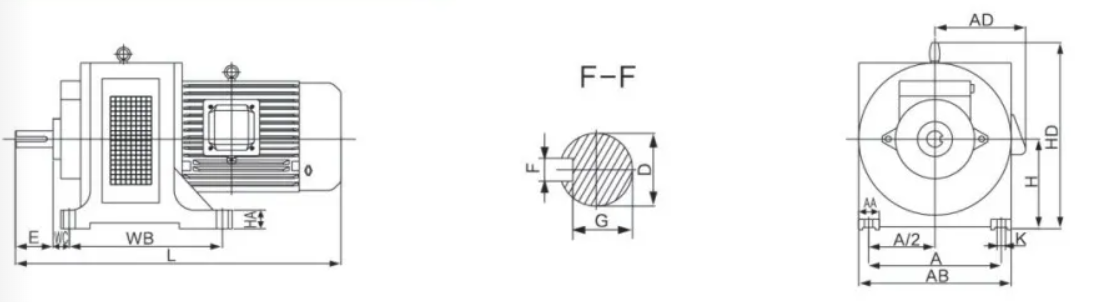

YCT series horizontal installation size

Type	Poles	Mounting Arrangement
		A	A/2	WB	WC		D		E		F
YCT90	-4	160	80	178	40	±1.5	18	+0.009 -0.004	40	±0.31	6	0-0.036
YCT112	-4A -4B	190	95	210	40	±1.5	19		40		6	0-0.03
YCT132	-4A -4B	216	108	241	40	±1.5	24		50		8	0-0.036
YCT160	-4A -4B	254	127	267	45	±1.5	28		60	±0.37	8	0-0.036
YCT180	-4A -4B	279	139.5	305	45	±1.5	28		60		8	0-0.036
YCT200	-4A -4B	318	159	356	50	±1.5	38	+0.018 +0.002	80		10	0-0.036
YCT225	-4A -4B	356	178	406	56	±1.5	42		110	±0.43	12	0-0.043
YCT250	-4A -4B	406	203	457	63	±2.0	48		110		14	0-0.043
YCT280	-4A -4B	457	228.5	508	70	±2.0	55	+0.030 +0.011	110		16	0-0.043
YCT315	-4A -4B	508	254	560	89	±2.0	60		140	±0.50	18	0-0.043
YCT355	-4A -4B -4C	610	305	630	108	±3.0	65		140	±0.50	18	0-0.043
							75				20	0-0.052
YCTD355	-4A -4B -4C	610	305	630	108	±3.0	80	+0.030 +0.011	170	±0.50	22	0-0.052

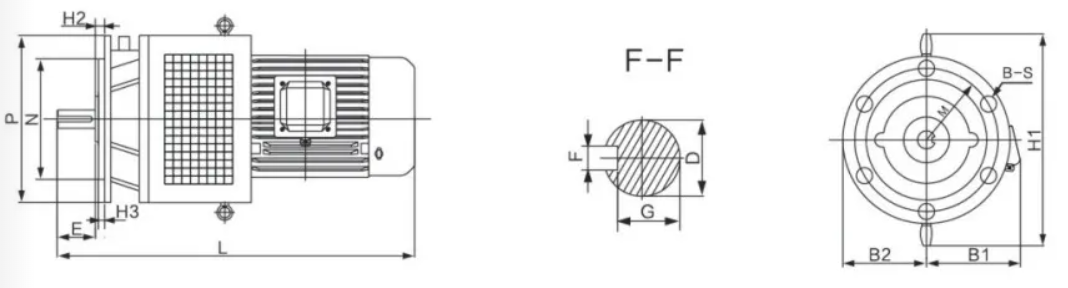

YCTL series vertical installation size

Mounting Arrangement							Overall
G		H		K			AB	AD	HD	L	HA	AA
14.5	0-0.01	90	0-0.5	10	0 +0.43	01.0 M	190	130	220	480	15	30
15.5		112		12			240	150	280	520	16	40
20	0-0.2	132		12			285	165	330	575585	16	55
24		160		15		01.5   M	330	185	385	665	20	65
24		180		15		01.5   M	365	195	430	700	20	70
33		200		19	0 +0.52	01.5   M	410	235	485	820860	20	80
37		225 250		19		01.5   M	465	270	545	980 1025	30	94
42.5				24		02.0 M	520	295	595	11301170	35	105
49		280	00-10	24			575	320	665	1280	40	110
53		315		28			645	345	770	14001425	45	130
58 67.5 71		355		28			755	390 420	890	1550 1630 1680	55	130
		355		28			755	576	890	1810 1880	55	130

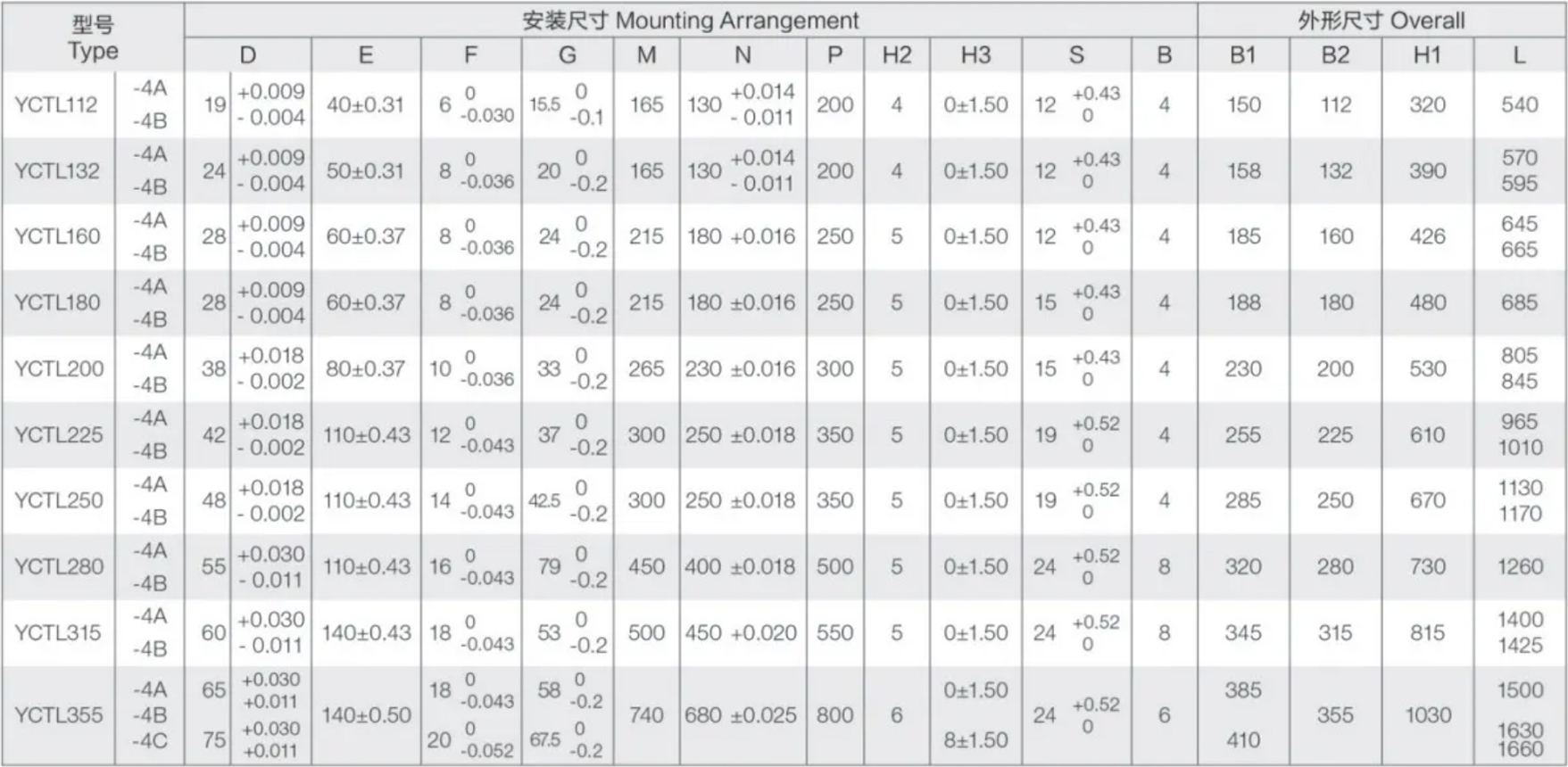

YCTL series horizontal installation model table

YCTL series horizontal installation model table

Explanation of Motor Enclosure Protection Level

It details the various protection values for solid motors, including the diameter or thickness of wires or strips that can be prevented from touching or approaching live or rotating parts inside the enclosure, as well as other functions.

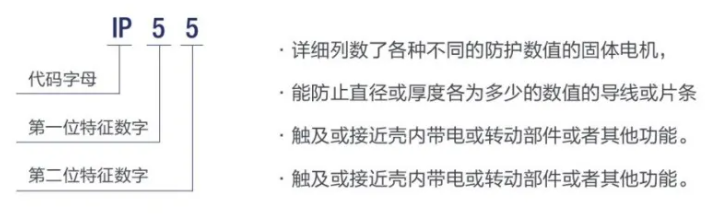

Interpretation of the Numbers after the Protection Level P

The first digit Indicates the degree of protection provided by the enclosure for people and internal components of the enclosure.			The second digit Indicates the degree of protection against harmful effects caused by water ingress into the enclosure.
Number	Brief description	Meaning	Number	Brief description	Meaning
0	Non - protected motor	No special protection.	0	Non - protected motor	No special protection.
1	Motor protected against solids larger than 50mm	Can prevent accidental or unintentional contact and approach of large parts of the human body (such as hands) to live or rotating parts inside the enclosure (but cannot prevent intentional contact).	1	Drip - proof motor	Vertical dripping water should have no harmful effects.
2	Motor protected against solids larger than 12mm	Can prevent fingers or similar objects no longer than 80mm from touching or approaching live or rotating parts inside the enclosure.	2	15° drip - proof motor	When the motor is tilted from the vertical position to any angle within 15° in any direction, vertical dripping water should have no harmful effects.
3	Motor protected against solids larger than 2.5mm	Can prevent tools or wires with a diameter larger than 2.5mm from touching or approaching live or rotating parts inside the enclosure.	3	Rain - proof motor	Rain within an angle of 60° from the vertical line should have no harmful effects.
4	Motor protected against solids larger than 1mm	Can prevent wires or strips with a diameter or thickness larger than 1mm from touching or approaching live or rotating parts inside the enclosure.	4	Splash - proof motor	It should be able to withstand splashing water from any direction without harmful effects.
5	Dust - protected motor	Can prevent contact or approach to live or rotating parts inside the enclosure. Although it cannot completely prevent dust from entering, the amount of dust entering is not enough to affect the normal operation of the motor.	5	Water - jet - proof motor	It should be able to withstand water jets from any direction without harmful effects.
6	Dust - tight motor	Completely prevent dust from entering.	6	Sea - wave - proof motor	When subjected to violent sea - wave impacts or strong water jets, the amount of water entering the motor should not reach a harmful level.
			7	Submersible - proof motor	When the motor is immersed in water at a specified pressure for a specified time, the amount of water entering the motor should not reach a harmful level.
			8	Continuously - submersible motor	The motor can be submerged in water for a long time under the conditions specified by the manufacturer.

Reference: GBT4942.1 - 2006 "Classification of degrees of protection provided by the integral design of rotating electrical machines (IP code)"

Specified by the national standard GB18613 - 2012
Minimum allowable values of energy efficiency and energy efficiency grades for small and medium three - phase asynchronous motors

Rated Power (kW)	Efficiency (η %)
	Level 1			Level 2			Level 3
	2 - pole	4 - pole	6 - pole	2 - pole	4 - pole	6 - pole	2 - pole	4 - pole	6 - pole
0.75	84.9	85.6	83.1	80.7	82.5	78.9	77.4	79.6	75.9
1.1	86.7	87.4	84.1	82.7	84.1	81.0	79.6	81.4	78.1
1.5	87.5	88.1	86.2	84.2	85.3	82.5	81.3	82.8	79.8
2.2	89.1	89.7	87.1	85.9	86.7	84.3	83.2	84.3	81.8
3.0	89.7	90.3	88.7	87.1	87.7	85.6	84.6	85.5	83.3
4.0	90.3	90.9	89.7	88.1	88.6	86.8	85.8	86.6	84.6
5.5	91.5	92.1	89.5	89.2	89.6	88.0	87.0	87.7	86.0
7.5	92.1	92.6	90.2	90.1	90.4	89.1	88.1	88.7	87.2
11	93.0	93.6	91.5	91.2	91.4	90.3	89.4	89.8	88.7
15	93.4	94.0	92.5	91.9	92.1	91.2	90.3	90.6	89.7
18.5	93.8	94.3	93.1	92.4	92.6	91.7	90.9	91.2	90.4
22	94.4	94.7	93.9	92.7	93.0	92.2	91.3	91.6	90.9
30	94.5	95.0	94.3	93.3	93.6	92.9	92.0	92.3	91.7
37	94.8	95.3	94.6	93.7	93.9	93.3	92.5	92.7	92.2
45	95.1	95.6	94.9	94.0	94.2	93.7	92.9	93.1	92.7
55	95.4	95.8	95.2	94.3	94.6	94.1	93.2	93.5	93.1
75	95.6	96.0	95.4	94.7	95.0	94.6	93.8	94.0	93.7
90	95.8	96.2	95.6	95.0	95.2	94.9	94.1	94.2	94.0
110	96.0	96.4	95.6	95.2	95.4	95.1	94.3	94.5	94.3
132	96.0	96.5	95.8	95.4	95.6	95.4	94.6	94.7	94.6
160	96.2	96.5	96.0	95.6	95.8	95.6	94.8	94.9	94.8
200	96.3	96.6	96.1	95.8	96.0	95.8	95.0	95.1	95.0
250	96.4	96.7	96.1	95.8	96.0	95.8	95.0	95.1	95.0
315	96.5	96.8	96.1	95.8	96.0	95.8	95.0	95.1	95.0
355~375	96.6	96.8	96.1	95.8	96.0	95.8	95.0	95.1	95.0

Note:Tolerance according to Chapter 12 of GB 755-2008.

Stipulated by the International Electrotechnical Commission IEC 60034 - 30
Minimum energy efficiency values for standard efficiency motors, high - efficiency motors, and ultra - high - efficiency motors

Rated Output (KW)	Efficiency(η%)
	Standard Efficiency(IE1)50Hz			High Efficiency(IE2)50Hz			Premium Efficiency(IE3)50Hz
	2 Poles	4 Poles	6 Poles	2 Poles	4 Poles	6 Poles	2 Poles	4 Poles	6 Poles
0.75	72.1	72.1	70.0	77.4	79.6	75.9	80.7	82.5	78.9
1.1	75.0	75.0	72.9	79.6	81.4	78.1	82.7	84.1	81.0
1.5	77.2	77.2	75.2	81.3	82.8	79.8	84.2	85.3	82.5
2.2	79.7	79.7	77.7	83.2	84.3	81.8	85.9	86.7	84.3
3.0	81.5	81.5	79.7	84.6	85.5	83.3	87.1	87.7	85.6
4.0	83.1	83.1	81.4	85.8	86.6	84.6	88.1	88.6	86.8
5.5	84.7	84.7	83.1	87.0	87.7	86.0	89.2	89.6	88.0
7.5	86.0	86.0	84.7	88.1	88.7	87.2	90.1	90.4	89.1
11	87.6	87.6	86.4	89.4	89.8	88.7	91.2	91.4	90.3
15	88.7	88.7	87.7	90.3	90.6	89.7	91.9	92.1	91.2
18.5	89.3	89.3	88.6	90.9	91.2	90.4	92.4	92.6	91.7
22	89.9	89.9	89.2	91.3	91.6	90.9	92.7	93.0	92.2
30	90.7	90.7	90.2	92.0	92.3	91.7	93.3	93.6	92.9
37	91.2	91.2	90.8	92.5	92.7	92.2	93.7	93.9	93.3
45	91.7	91.7	91.4	92.9	93.1	92.7	94.0	94.2	93.7
55	92.1	92.1	91.9	93.2	93.5	93.1	94.3	94.6	94.1
75	92.7	92.7	92.6	93.8	94.0	93.7	94.7	95.0	94.6
90	93.0	93.0	92.9	94.1	94.2	94.0	95.0	95.2	94.9
110	93.3	93.3	93.3	94.3	94.5	94.3	95.2	95.4	95.1
132	93.5	93.5	93.5	94.6	94.7	94.6	95.4	95.6	95.4
160	93.8	93.8	93.8	94.8	94.9	94.8	95.6	95.8	95.6
200~375	94.0	94.0	94.0	95.0	95.1	95.0	95.8	96.0	95.8

Motor bearing model list

Frame Size	Poles	YE2,YE3,Y2 series and derived series motor		GS(YX3)series
		Bearing on DE	Bearing on NDE	Bearing on DE	Bearing on NDE
56	24	6201-2RZ	6201-2RZ	6201-2RZ	6201-2RZ
63	24	6201-2RZ	6201-2RZ	6201-2RZ	6201-2RZ
71	2,4,6	6202-2RZ	6202-2RZ	6202-2RZ	6202-2RZ
80	2,4,6,8	6204-2RZ	6204-2RZ	6204-2RZ	6204-2RZ
90	2,4,6,8	6205-2RZ	6205-2RZ	6205-2RZ	6205-2RZ
100	2,4,6,8	6206-2RZ	6206-2RZ	6206-2RZ	6206-2RZ
112	2,4,6,8	6306-2RZ	6206-2RZ	6206-2RZ	6206-2RZ
132	2,4,6,8	6308-2RZ	6208-2RZ	6208-2RZ	6208-2RZ
160	2	6309-2RZ	6209-2RZ	6209-2RZ	6209-2RZ
	4,6,8	6309-2RZ	6209-2RZ	6309-2RZ	6209-2RZ
180	2	6311	6211	6211	6211
	4,6,8	6311	6211	6311	6211
200	2	6312	6212	6212	6212
	4,6,8	6312	6212	6312	6212
225	2	6312	6312	6312	6312
	4,6,8	6313	6312	6313	6312
250	2	6313	6313	6313	6313
	4,6,8	6314	6313	6314	6313
280	2	6314	6314	6314	6314
	4,6,8,10	6317	6314	6317	6314
315	2	6317	6317	6317	6317
	4,6,8,10	NU319	6319	NU319	6319
355	2	6319	6319	6319	6319
	4,6,8,10	NU322	6322	NU322	6326
400	2	6326	6326	6326	6326
	4,6,8,10	NU326	6326	NU326	-

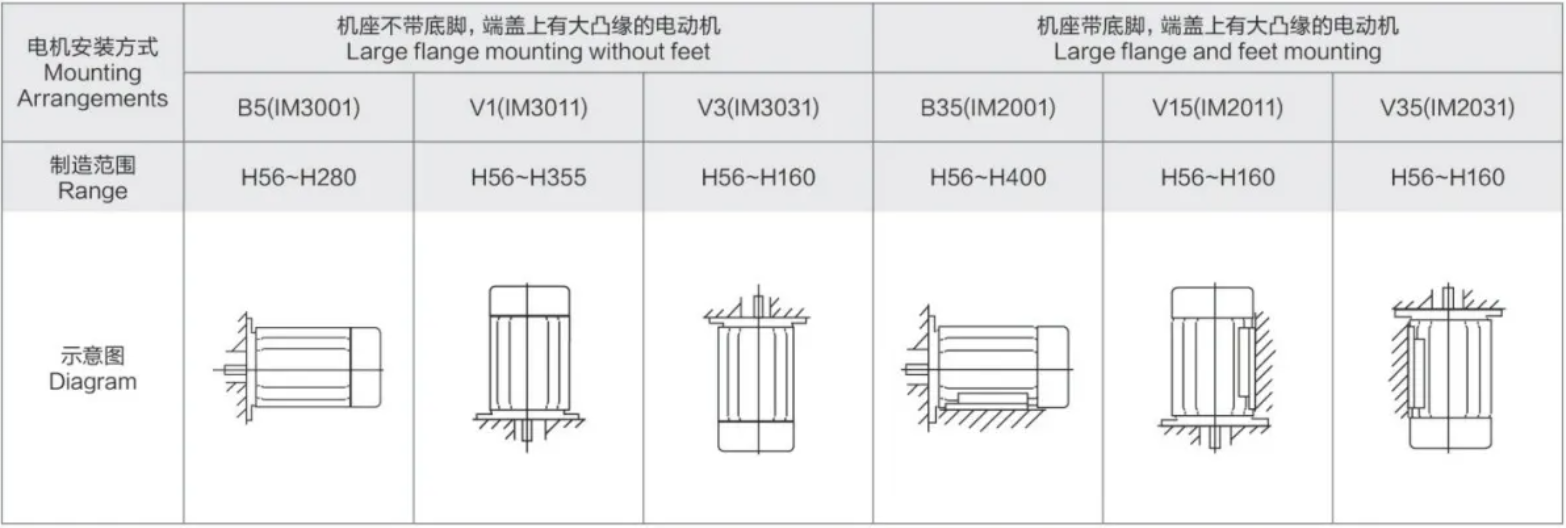

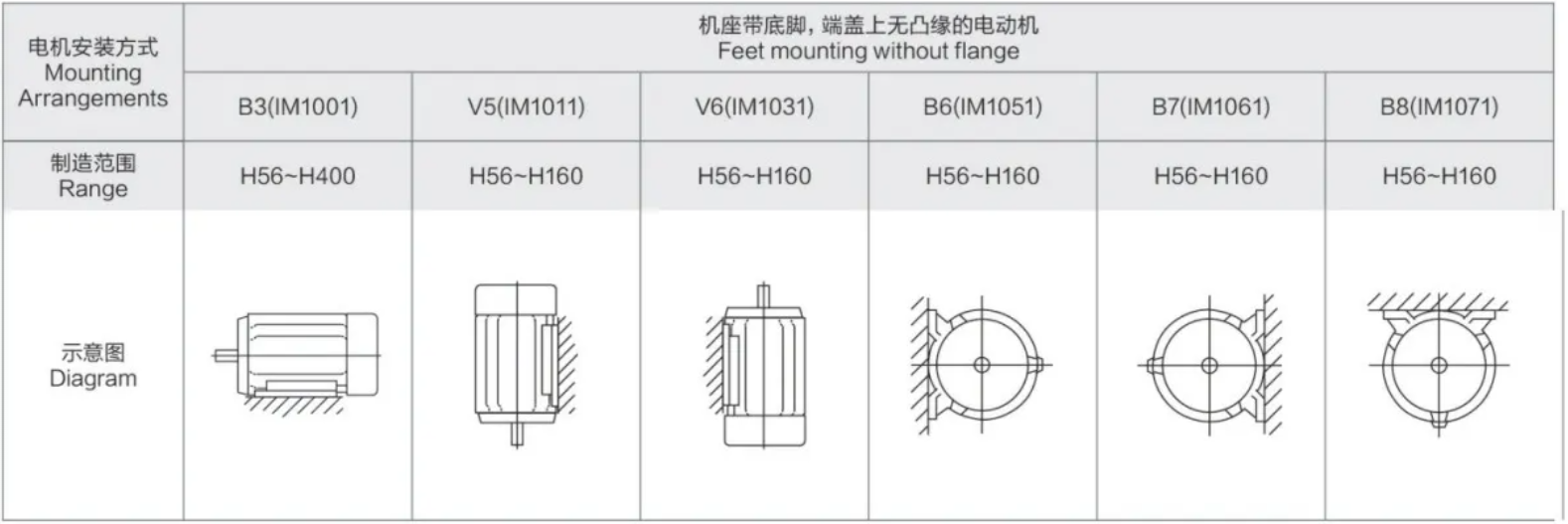

International Electrotechnical Commission IEC60034-7 standard for motor installation
