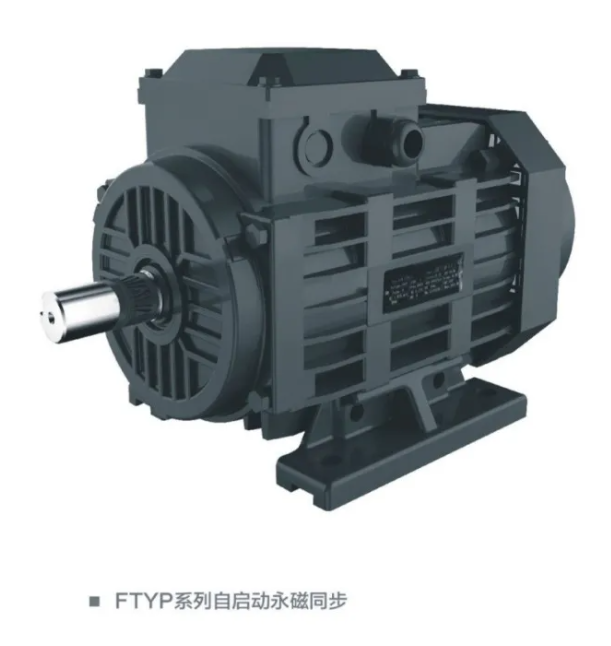

FTYP SERIES SELF-STARTING PERMANENT MAGNET SYNCHRONOUS MOTOR

Feature Description

The FTYP series of self-starting permanent magnet synchronous motors do not require reactive excitation current, have a high power factor, reduce the stator current and resistance losses. Moreover, there is no rotor copper loss during stable operation, which can further reduce the corresponding wind friction losses of the fan. As a result, their efficiency is 5% - 10% higher than that of induction motors of the same specification.

FTYP series B14 self-starting permanent magnet synchronous motor technical parameters

Model	Power (KW)	Rotational Speed (r/min)	Current (A)	Efficiency (%)	Power Factor (COS)	Rated Frequency (Hz)	Rated Voltage (V)
FTYP80M1-4	0.55	1500	1.03	86.9	0.92	50	380
FTYP80M2-4	0.75	1500	1.3	88.2	0.92	50	380
FTYP90S1-4	1.1	1500	1.94	87.8	0.98	50	380
FTYP90L1-4	1.5	1500	2.54	89.6	0.98	50	380
FTYP100L1-4	2.2	1500	3.85	90.4	0.95	50	380
FTYP100L2-4	3	1500	5.16	91.3	0.96	50	380
FTYP112M1-4	4	1500	6.6	92.2	0.99	50	380
FTYP132S1-4	5.5	1500	9.3	92.4	0.97	50	380
FTYP132M1-4	7.5	1500	12.5	93.2	0.97	50	380
FTYP160M1-4	11	1500	18.3	93.7	0.98	50	380
FTYP160L1-4	15	1500	24.9	94.1	0.97	50	380

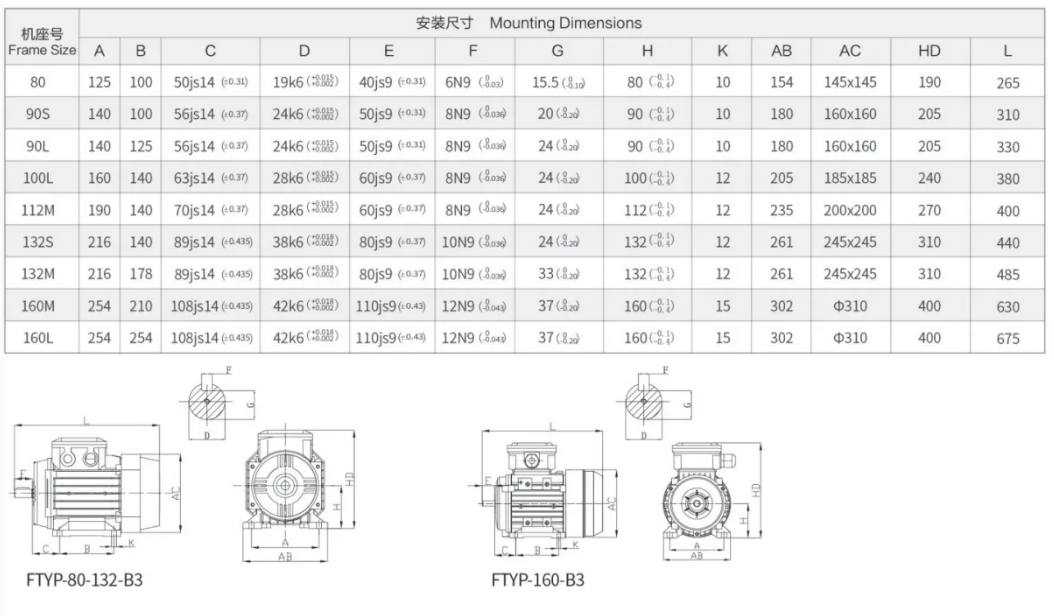

FTYP series B3 installation size and external size table

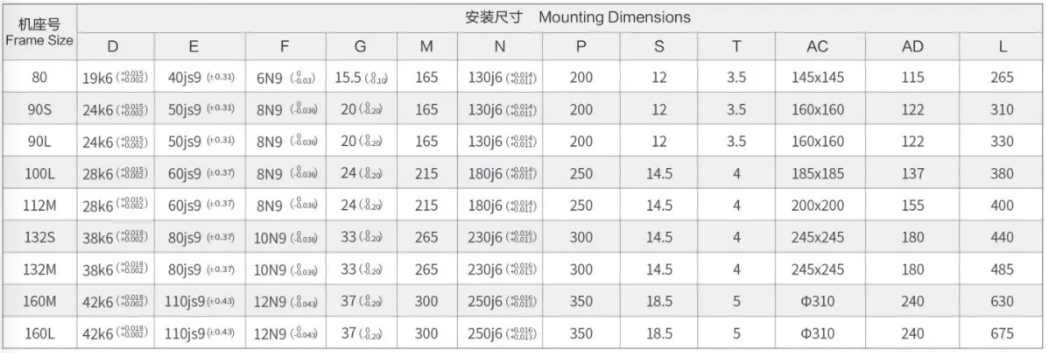

FTYP series B5 installation size and external size table

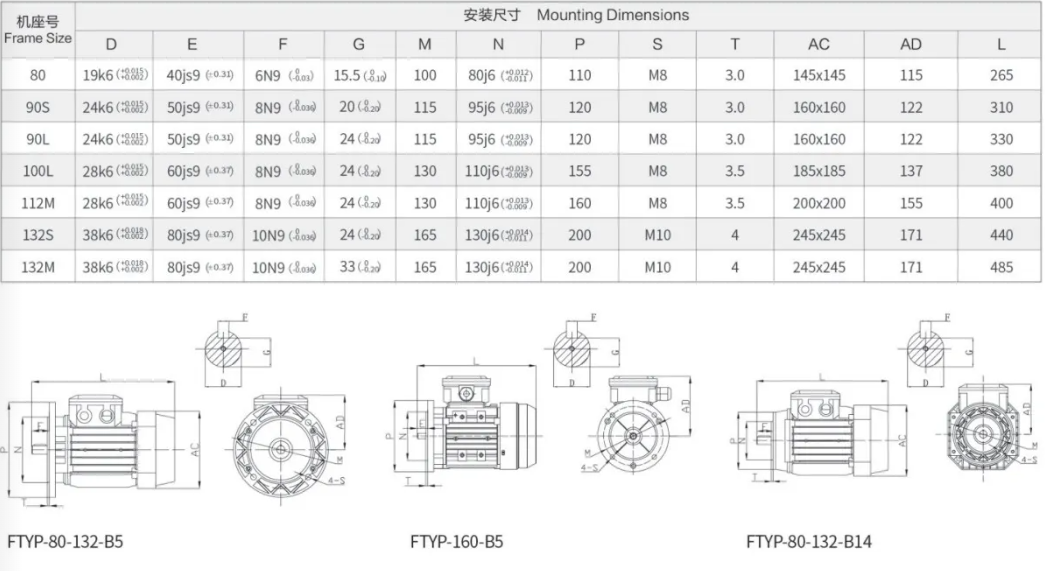

FTYP series B14 installation size and external size table
