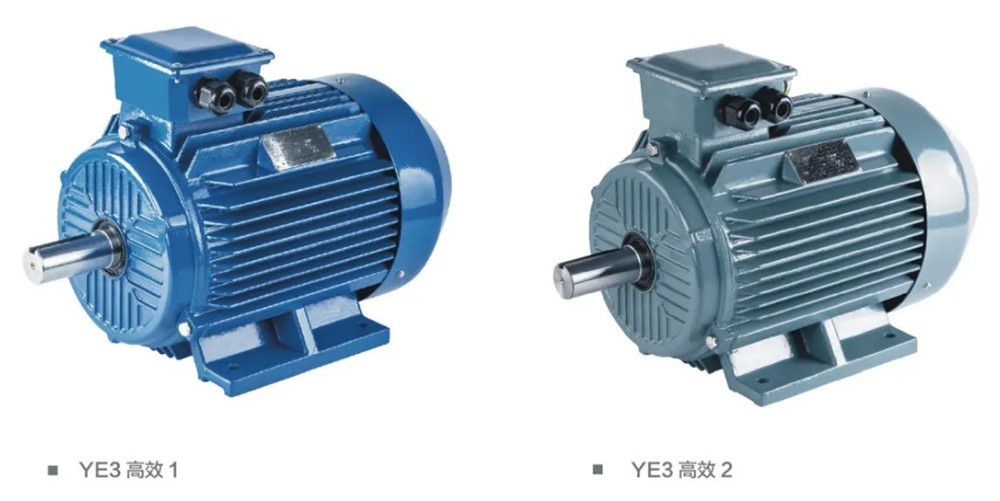

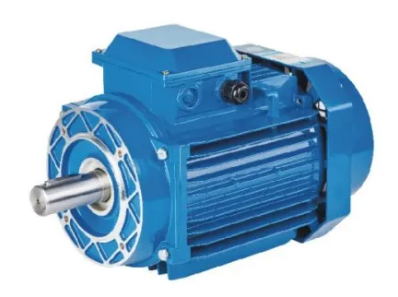

YE3 SERIES ULTRA-EFFICIENT THREE-PHASE ASYNCHRONOUS MOTOR

Feature description:

The YE3 series is a fully enclosed self - ventilated air - cooled squirrel - cage ultra - high - efficiency three - phase asynchronous motor newly developed by our company in accordance with GBT28575 - 2012. Moreover, the company has obtained the ultra - high - efficiency energy - saving certification. The efficiency index of this series of motors reaches the 2nd - level energy - efficiency grade in China's GB18613 - 2012 "Minimum allowable values of energy efficiency and energy efficiency grades for small and medium three - phase asynchronous motors", conforms to the IE3 energy - efficiency grade in IEC60034 - 30, and is at the same level as the currently most advanced NEMA ultra - high - efficiency motors in the United States.

Compared with the YE2 series, the YE3 series ultra - high - efficiency motors are more energy - saving, low - carbon, and environmentally friendly. Their installation dimensions and power ratings are exactly the same as those of ordinary motors, conforming to the IEC60072 - 1 standard of the International Electrotechnical Commission. They can be directly replaced to achieve the purpose of energy and electricity conservation, which is convenient for market promotion. Motors with a center height of H160 and above can be equipped with a non - stop oil injection and drainage device, and there is a reserved space for installing thermistors and moisture - proof heating tapes, which is convenient for users to choose.

The power range of this series of motors is from 0.75kW to 375kW; the center height of the frame is from H80 to H355.

Technical parameters of YE3 series motors:

Motor	Rated Output		At Full Load						Rated Torque (Tn)	Rated Torque	Rated Torque	Rated Current	Noise	Weight
	Rated Output		Speed	Current (Amp)			Efficiency	Power Factor	Rated Torque (Tn)	Rated Torque	Rated Torque	Rated Current	Noise	Weight
	KW	HP	RPM	380V	400V	415V	η%	Cosφ	N.m	Tst/Tn	Tmax/ Tn	Ist/In	dB(A)	Kg
YE3-80M1-2	0.75	1	2843	1.72	1.64	1.58	80.7	0.82	2.52	2.3	2.3	7.0	62	16
YE3-80M2-2	1.1	1.5	2843	2.43	2.31	2.23	82.7	0.83	3.70	2.2	2.3	7.3	62	17.5
YE3-90S-2	1.5	2	2856	3.22	3.06	2.95	84.2	0.84	5.02	2.2	2.3	7.6	67	23.5
YE3-90L-2	2.2	3	2856	4.58	4.35	4.19	85.9	0.85	7.36	2.2	2.3	7.6	67	28.5
YE3-100L-2	3	4	2883	6.02	5.71	5.51	87.1	0.87	9.94	2.2	2.3	7.8	74	38
YE3-112M-2	4	5.5	2892	7.84	7.45	7.18	88.1	0.88	13.21	2.2	2.3	8.3	77	49
YE3-132S1-2	5.5	7.5	2910	10.6	10.1	9.75	89.2	0.88	18.05	2.0	2.3	8.3	79	63
YE3-132S2-2	7.5	10	2910	14.4	13.7	13.2	90.1	0.88	24.61	2.0	2.3	7.9	79	70
YE3-160M1-2	11	15	2937	20.6	19.6	18.9	91.2	0.89	35.76	2.0	2.3	8.1	81	121
YE3-160M2-2	15	20	2937	27.9	26.5	25.5	91.9	0.89	48.77	2.0	2.3	8.1	81	132
YE3-160L-2	18.5	25	2937	34.2	32.5	31.3	92.4	0.89	60.15	2.0	2.3	8.2	81	152
YE3-180M-2	22	30	2946	40.5	38.5	37.1	92.7	0.89	71.31	2.0	2.3	8.2	83	191
YE3-200L1-2	30	40	2955	54.9	52.1	50.3	93.3	0.89	96.94	2.0	2.3	7.6	84	240
YE3-200L2-2	37	50	2955	67.4	64	61.7	93.7	0.89	119.6	2.0	2.3	7.6	84	257
YE3-225M-2	45	60	2964	80.8	76.8	74	94.0	0.90	145.0	2.0	2.3	7.7	86	310
YE3-250M-2	55	75	2969	98.5	93.5	90.2	94.3	0.90	176.9	2.0	2.3	7.7	89	400
YE3-280S-2	75	100	2973	133.7	127	122.4	94.7	0.90	240.9	1.8	2.3	7.1	91	525
YE3-280M-2	90	120	2973	159.9	151.9	146.4	95.0	0.90	289.1	1.8	2.3	7.1	91	555
YE3-315S-2	110	150	2978	195.1	185.3	178.6	95.2	0.90	352.8	1.8	2.3	7.1	92	990
YE3-315M-2	132	180	2978	233.6	221.9	213.9	95.4	0.90	423.3	1.8	2.3	7.1	92	1180
YE3-315L1-2	160	220	2978	279.4	265.5	255.9	95.6	0.91	513.1	1.8	2.3	7.2	92	1280
YE3-315L2-2	200	270	2978	348.6	331.1	319.2	95.8	0.91	641.4	1.8	2.2	7.2	92	1250
YE3-355M-2	250	340	2982	435.7	413.9	399	95.8	0.91	800.6	1.6	2.2	7.2	100	1910
YE3-355L-2	315	430	2982	549	521.5	502.7	95.8	0.91	1008.7	1.6	2.2	7.2	100	2000

Model	Rated Output		At Full Load						Rated Torque (Tn)	Rated Torque	Rated Torque	Rated Current	Noise	Weight
	Rated Output		Speed	Input Current (Amp)			Efficiency	Power Factor	Rated Torque (Tn)	Rated Torque	Rated Torque	Rated Current	Noise	Weight
	KW	HP	RPM	380V	400V	415V	η%	Cosφ	N.m	Tst/Tn	Tmax/ Tn	Ist/In	dB(A)	Kg
YE3-80M2-4	0.75	1	1401	1.84	1.75	1.69	82.5	0.75	5.11	2.3	2.3	6.6	56	18.5
YE3-90S-4	1.1	1.5	1410	2.61	2.48	2.39	84.1	0.76	7.45	2.3	2.3	6.8	59	24
YE3-90L-4	1.5	2	1410	3.47	3.3	3.18	85.3	0.77	10.16	2.3	2.3	7.0	59	29.5
YE3-100L1-4	2.2	3	1428	4.76	4.52	4.36	86.7	0.81	14.71	2.3	2.3	7.6	64	39.5
YE3-100L2-4	3	4	1428	6.34	6.02	5.8	87.7	0.82	20.06	2.3	2.3	7.6	64	43.5
YE3-112M-4	4	5.5	1446	8.37	7.95	7.66	88.6	0.82	26.41	2.2	2.3	7.8	65	52
YE3-132S-4	5.5	7.5	1446	11.2	10.7	10.3	89.6	0.83	36.32	2.0	2.3	7.9	71	66
YE3-132M-4	7.5	10	1446	15	14.3	13.7	90.4	0.84	49.53	2.0	2.3	7.5	71	78
YE3-160M-4	11	15	1464	21.5	20.4	19.7	91.4	0.85	71.75	2.2	2.3	7.7	73	122
YE3-160L-4	15	20	1464	28.8	27.3	26.3	92.1	0.86	97.84	2.2	2.3	7.8	73	139
YE3-180M-4	18.5	25	1469	35.3	33.5	32.3	92.6	0.86	120.3	2.0	2.3	7.8	76	188
YE3-180L-4	22	30	1469	41.8	39.7	38.3	93.0	0.86	143.1	2.0	2.3	7.8	76	193
YE3-200L-4	30	40	1473	56.6	53.8	51.9	93.6	0.86	194.5	2.0	2.3	7.3	76	256
YE3-225S-4	37	50	1478	69.6	66.1	63.7	93.9	0.86	239.1	2.0	2.3	7.4	78	308
YE3-225M-4	45	60	1478	84.4	80.2	77.3	94.2	0.86	290.8	2.0	2.3	7.4	78	337
YE3-250M-4	55	75	1478	102.7	97.6	94.1	94.6	0.86	355.5	2.2	2.3	7.4	79	410
YE3-280S-4	75	100	1482	136.3	129.5	124.8	95.0	0.88	483.2	2.0	2.3	6.9	80	541
YE3-280M-4	90	120	1482	163.2	155.1	149.5	95.2	0.88	579.9	2.0	2.3	6.9	80	630
YE3-315S-4	110	150	1482	196.8	187	180.2	95.4	0.89	708.8	2.0	2.2	7.0	88	910
YE3-315M-4	132	180	1482	235.7	223.9	215.8	95.6	0.89	850.5	2.0	2.2	7.0	88	1005
YE3-315L1-4	160	220	1482	285.1	270.9	261.1	95.8	0.89	1030.9	2.0	2.2	7.1	88	1085
YE3-315L2-4	200	270	1482	351.7	334.1	322	96.0	0.90	1288.7	2.0	2.2	7.1	88	1160
YE3-355M-4	250	340	1491	439.6	417.7	402.6	96.0	0.90	1601.1	2.0	2.2	7.1	98	1830
YE3-355L-4	315	430	1491	553.9	526.2	507.2	96.0	0.90	2017.4	2.0	2.2	7.1	95	1990

Model	Rated Output		At Full Load						Rated Torque (Tn)	Rated Torque	Rated Torque	Rated Current	Noise	Weight
	Rated Output		Speed	Input Current (Amp)			Efficiency	Power Factor	Rated Torque (Tn)	Rated Torque	Rated Torque	Rated Current	Noise	Weight
	KW	HP	RPM	380V	400V	415V	η%	Cosφ	N.m	Tst/Tn	Tmax/ Tn	Ist/In	dB(A)	Kg
YE3-90S-6	0.75	1	919	2.03	1.93	1.86	78.9	0.71	7.79	2.0	2.1	6.0	57	23
YE3-90L-6	1.1	1.5	919	2.83	2.69	2.59	81.0	0.73	11.43	2.0	2.1	6.0	57	28.5
YE3-100L-6	1.5	2	937	3.78	3.6	3.47	82.5	0.73	15.29	2.0	2.1	6.5	61	37.5
YE3-112M-6	2.2	3	946	5.36	5.09	4.91	84.3	0.74	22.21	2.0	2.1	6.6	65	48
YE3-132S-6	3	4	964	7.2	6.84	6.59	85.6	0.74	29.72	2.0	2.1	6.8	69	65
YE3-132M1-6	4	5.5	964	9.46	8.99	8.66	86.8	0.74	39.62	2.0	2.1	6.8	69	73
YE3-132M2-6	5.5	7.5	964	12.7	12	11.6	88.0	0.75	54.48	2.0	2.1	7.0	69	82
YE3-160M-6	7.5	10	973	16.2	15.4	14.8	89.1	0.79	73.60	2.0	2.1	7.0	73	113
YE3-160L-6	11	15	973	23.1	22	21.2	90.3	0.80	108.0	2.0	2.1	7.2	73	134
YE3-180L-6	15	20	973	30.9	29.3	28.2	91.2	0.81	147.2	2.0	2.1	7.3	73	178
YE3-200L1-6	18.5	25	978	37.8	36	34.7	91.7	0.81	180.7	2.0	2.1	7.3	73	226
YE3-200L2-6	22	30	978	44.8	42.5	41	92.2	0.81	214.9	2.0	2.1	7.4	73	243
YE3-225M-6	30	40	982	59.1	56.2	54.1	92.9	0.83	291.7	2.0	2.1	6.9	74	294
YE3-250M-6	37	50	982	71.7	68.1	65.7	93.3	0.84	359.8	2.0	2.1	7.1	76	388
YE3-280S-6	45	60	982	85.8	81.6	78.6	93.7	0.85	437.6	2.0	2.0	7.3	78	495
YE3-280M-6	55	75	982	103.3	98.1	94.6	94.1	0.86	534.8	2.0	2.0	7.3	78	574
YE3-315S-6	75	100	987	143.4	136.2	131.3	94.6	0.84	726.0	2.0	2.0	6.6	83	836
YE3-315M-6	90	120	987	169.5	161.0	155.2	94.9	0.85	871.2	2.0	2.0	6.7	83	940
YE3-315L1-6	110	150	987	206.8	196.4	189.3	95.1	0.85	1064.8	2.0	2.0	6.7	83	1068
YE3-315L2-6	132	180	987	244.5	232.2	223.8	95.4	0.86	1277.7	2.0	2.0	6.8	83	1140
YE3-355M1-6	160	220	991	295.7	280.9	270.7	95.6	0.86	1541.7	1.8	2.0	6.8	85	1742
YE3-355M2-6	200	270	991	364.6	346.4	333.8	95.8	0.87	1927.1	1.8	2.0	6.8	85	1850
YE3-355L-6	250	340	991	455.7	433.0	417.3	95.8	0.87	2408.9	1.8	2.0	6.8	85	1960

Asynchronous motors have the advantages of simple structure, convenient manufacturing, use and maintenance, reliable operation, small quality and low cost. Asynchronous motors are mainly used in driving machine tools, pumps, blowers, compressors, lifting and winching equipment, mining machinery, light industrial machinery, agricultural and sideline products processing machinery, most industrial and agricultural production machinery, as well as household appliances and medical apparatus. < br/> Synchronous motors are mainly used in large machinery, such as blowers, pumps, ball mills, compressors, rolling mills, and small micro-instruments or as control components. Among them, the three-phase synchronous motor is its main body. In addition, it can also be used as a camera to transmit inductive or capacitive reactive power to the power grid.
