Three phase asynchronous motor

Current Location: Home>PRODUCTS

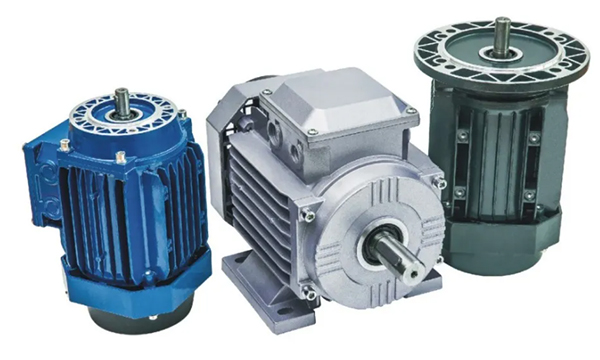

Y2 SERIES ALUMINUM SHELL THREE PHASE ASYNCHRONOUS MOTOR

Characteristic description:
Y2 series aluminum shell three-phase asynchronous motor is a fully enclosed self-fan-type squirrel-cage three-phase asynchronous motor, using the national unified design standards, with high efficiency and energy saving, high starting torque, low noise, low vibration, high reliability, power level and installation size in line with the International Electrotechnical Commission EC standards, easy to use and maintenance.
This series of motors are widely used in general places and precision instruments without special requirements, especially suitable for gear reducers, air compressors, pumps, oil pumps, assembly lines, packaging, food machinery and other industries.

Y2 series motor technical parameters:

Model Rated Output Full Load Rated Torque
(Tn) 		Rated Torque Rated Torque Rated Current Noise Weight
Speed Input Current (Amp) Efficiency Power Factor
KW HP RPM 380V 400V 415V η% Cosφ N.m Tst/Tn Tmax/Tn Ist/In dB(A) Kg
synchronous speed 3000r/min
Y2-63M1-2 0.18 0.25 2720 0.53 0.50 0.49 65 0.8 0.63 2.2 2.2 5.5 58 4.8
Y2-63M2-2 0.25 0.35 2720 0.69 0.66 0.63 68 0.81 0.88 2.2 2.2 5.5 58 5.1
Y2-71M1-2 0.37 0.5 2740 0.99 0.94 0.91 70 0.81 1.29 2.2 2.2 6.1 61 6.0
Y2-71M2-2 0.55 0.75 2740 1.4 1.33 1.28 73 0.82 1.92 2.2 2.3 6.1 61 6.5
Y2-80M1-2 0.75 1.0 2830 1.77 1.68 1.62 77.4 0.83 2.53 2.2 2.3 6.1 64 8.7
Y2-80M2-2 1.1 1.5 2830 2.50 2.38 2.29 79.6 0.84 3.71 2.2 2.3 7.0 64 9.5
Y2-90S-2 1.5 2.0 2840 3.34 3.17 3.06 81.3 0.84 5.04 2.2 2.3 7.0 69 11.8
Y2-90L-2 2.2 3.0 2840 4.73 4.49 4.33 83.2 0.85 7.4 2.2 2.3 7.0 69 13.5
Y2-100L-2 3.0 4.0 2870 6.19 5.88 5.67 84.6 0.87 9.98 2.2 2.3 7.5 73 21
Y2-112M-2 4.0 5.5 2890 8.05 7.65 7.37 85.8 0.88 13.22 2.2 2.3 7.5 74 28
Y2-132S1-2 5.5 7.5 2900 10.9 10.4 10.0 87 0.88 18.11 2.2 2.3 7.5 77 39
Y2-132S2-2 7.5 10 2900 14.7 14.0 13.5 88.1 0.88 24.7 2.2 2.3 7.5 77 44.5
Y2-160M1-2 11 15 2930 21 20.0 19.2 89.4 0.89 35.85 2.2 2.3 7.5 83 69.2
Y2-160M2-2 15 20 2930 28.4 27.0 26.0 90.3 0.89 48.89 2.2 2.3 7.5 83 78
Y2-160L-2 18.5 25 2930 34.4 32.7 31.5 90.9 0.90 60.3 2.2 2.3 7.5 83 88.5
synchronous speed 1500r/min
Y2-63M1-4 0.12 0.18 1310 0.44 0.42 0.40 57 0.72 0.87 2.1 2.2 4.4 48 4.8
Y2-63M2-4 0.18 0.25 1310 0.62 0.59 0.57 60 0.73 1.31 2.1 2.2 4.4 48 5.1
Y2-71M1-4 0.25 0.35 1330 0.79 0.75 0.72 65 0.74 1.80 2.1 2.2 5.2 53 6.0
Y2-71M2-4 0.37 0.5 1330 1.12 1.06 1.03 67 0.75 2.66 2.1 2.2 5.2 53 6.3
Y2-80M1-4 0.55 0.75 1390 1.57 1.49 1.44 71 0.75 3.78 2.4 2.3 5.2 58 9.4
Y2-80M2-4 0.75 1.0 1390 1.88 1.79 1.72 73 0.76 5.15 2.3 2.3 6.0 58 10.8
Y2-90S-4 1.1 1.5 1400 2.67 2.54 2.44 75 0.77 7.5 2.3 2.3 6.0 59 12
Y2-90L-4 1.5 2.0 1400 3.48 3.31 3.19 78 0.79 10.23 2.3 2.3 6.0 59 13.8
Y2-100L1-4 2.2 3.0 1430 4.9 4.66 4.49 80 0.81 14.69 2.3 2.3 7.0 61 21
Y2-100L2-4 3.0 4.0 1430 6.5 6.18 5.95 82 0.82 20.03 2.3 2.3 7.0 61 23.5
Y2-112M-4 4.0 5.5 1440 8.56 8.13 7.84 84 0.82 26.53 2.3 2.3 7.0 62 29.5
Y2-132S1-4 5.5 7.5 1440 11.5 10.9 10.5 85 0.83 36.48 2.3 2.3 7.0 69 41
Y2-132M-4 7.5 10 1440 15.3 145 14.0 87 0.84 49.74 2.3 2.3 7.0 69 47.5
Y2-132M1-4 9 12 1440 18.3 17.4 16.8 87 0.84 59.69 2.3 2.3 7.0 69 48.5
Y2-160M-4 11 15 1460 22.2 21.1 20.3 88 0.84 71.95 2.2 2.3 7.0 72 72.5
Y2-160L-4 15 20 1460 29.6 28.1 27.1 89 0.85 98.12 2.2 2.3 7.5 72 85.6

Model Rated Output Full Load Rated
Torque
(Tn) 		Rated Torque Rated Torque Rated Current Noise Weight
Speed Current (Amp) Efficiency Power
Factor
KW HP RPM 380V 400V 415V η% Cosφ N.m Tst/Tn Tmax/
Tn 		Ist/In dB(A) Kg
synchronous speed 1000r/min
Y2-63M1-6 0.09 0.12 840 0.52 0.49 0.48 44 0.6 1.02 1.8 1.9 3.5 48 4.8
Y2-63M2-6 0.12 0.18 840 0.63 0.63 0.58 48 0.6 1.36 1.8 1.9 3.5 48 5.1
Y2-71M1-6 0.18 0.25 850 0.74 0.70 0.68 56 0.66 2.02 1.9 2.0 4.0 49 6.0
Y2-71M2-6 0.25 0.37 850 0.95 0.90 0.87 59 0.68 2.81 1.9 2.0 4.0 49 6.3
Y2-80M1-6 0.37 0.5 890 1.3 1.24 1.19 62 0.7 3.97 1.9 2.0 4.7 51 8.9
Y2-80M2-6 0.55 0.75 890 1.79 1.70 1.64 65 0.72 5.90 1.9 2.1 4.7 51 10.4
Y2-90S-6 0.75 1.0 910 2.09 1.99 1.91 69 0.72 7.87 2.0 2.1 5.5 54 12.1
Y2-90L-6 1.1 1.5 910 2.93 2.78 2.68 72 0.73 11.54 2.0 2.1 5.5 54 13.7
Y2-100L-6 1.5 2.0 940 3.81 3.62 3.49 76 0.75 15.24 2.0 2.1 5.5 58 23
Y2-112M-6 2.2 3.0 940 5.38 5.11 4.93 79 0.76 22.35 2.0 2.1 6.5 62 28.2
Y2-132S-6 3.0 4.0 960 7.2 6.84 6.59 81 0.76 29.84 2.1 2.1 6.5 66 40.3
Y2-132M1-6 4.0 5.5 960 9.45 8.89 8.65 82 0.76 39.79 2.1 2.1 6.5 66 43
Y2-132M2-6 5.5 7.5 960 12.6 12.0 11.5 84 0.77 54.71 2.1 2.1 6.5 66 47.2
Y2-160M-6 7.5 10 970 17 16.2 15.6 87 0.77 73.84 2.0 2.1 6.5 70 70.6
Y2-160L-6 11 15 970 24.2 23.0 22.2 89 0.78 108.3 2.0 2.1 6.5 70 85
synchronous speed 750r/min
Y2-71M1-8 0.09 0.12 600 0.6 0.57 0.55 40 0.57 1.43 1.8 1.9 2.8 48 6
Y2-71M2-8 0.12 0.18 600 0.71 0.67 0.65 45 0.57 1.91 1.8 1.9 2.8 48 6.3
Y2-80M1-8 0.18 0.25 630 0.88 0.84 0.81 51 0.61 2.73 1.8 1.9 3.3 49 8.9
Y2-80M2-8 0.25 0.35 640 1.15 1.09 1.05 54 0.61 3.73 1.8 1.9 3.3 49 10.4
Y2-90S-8 0.37 0.5 660 1.49 1.42 1.36 62 0.61 5.35 1.8 1.9 4.0 53 12.1
Y2-90L-8 0.55 0.75 660 2.17 2.06 1.99 63 0.61 7.96 1.8 2.0 4.0 53 13.7
Y2-100L1-8 0.75 1.0 680 2.4 2.28 2.20 71 0.67 10.53 1.8 2.0 4.0 56 23
Y2-100L2-8 1.1 1.5 680 3.32 3.15 3.04 73 0.69 15.45 1.8 2.0 5.0 56 25.1
Y2-112M-8 1.5 2.0 680 4.4 4.18 4.03 75 0.69 21.07 1.8 2.0 5.0 59 28.2
Y2-132S-8 2.2 3.0 710 6.04 5.74 5.53 78 0.71 29.59 1.8 2.0 6.0 61 40.3
Y2-132M-8 3.0 4.0 710 7.9 7.51 7.23 79 0.73 40.35 1.8 2.0 6.0 61 45
Y2-160M1-8 4.0 5.5 720 10.3 9.79 9.43 81 0.73 53.06 1.9 2.0 6.0 65 68.5
Y2-160M2-8 5.5 7.5 720 13.6 12.9 12.5 83 0.74 72.95 2.0 2.0 6.0 65 76
Y2-160L-8 7.5 10 720 17.8 16.9 16.3 85.5 0.75 99.5 2.0 2.0 6.0 65 86.2

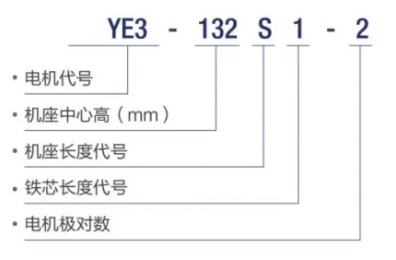

  • Motor Model Explanation
    National Standard, European Standard Level Description: Refer to the tables on pages 68 and 69
    Motor Bearing Number Model Table: Refer to the table on page 70
    CNS Standard Three-Phase Motor Inspection Standards: Refer to the table on page 72
    Motor Full Load Current Table: Refer to the table on page 73

  • Installation Methods
    • IMB3
    • IMB5
    • IMB6
    • IMB7
    • IMB8
    • IMB14
    • IMB34
    • IMB35
    • IMV1
    • IMV3
    • IMV5
    • IMV6
    • IMV15
    • IMV17
    • IMV18
    • IMV19
    • IMV35
    • IMV37

    Installation Methods: According to IEC 60034-7 Standard
    Refer to the table on page 71
  • Operating Conditions
    Operating Conditions
    Ambient Temperature: -15℃~40℃
    Altitude: Not exceeding 1000 meters
    Rated Voltage: 380V, 400V, 415V
    Rated Frequency: 50Hz, 60Hz
    Connection: Motors with rated power of 3kW and below are Y-connected
    Motors with rated power of 4kW and above are △-connected
    Duty Cycle: Continuous duty (S1)
    Protection Class: IP55
    Insulation Class: Class F
    Cooling Method: IC411
  • Product Features
