Three phase asynchronous motor

Current Location: Home>PRODUCTS

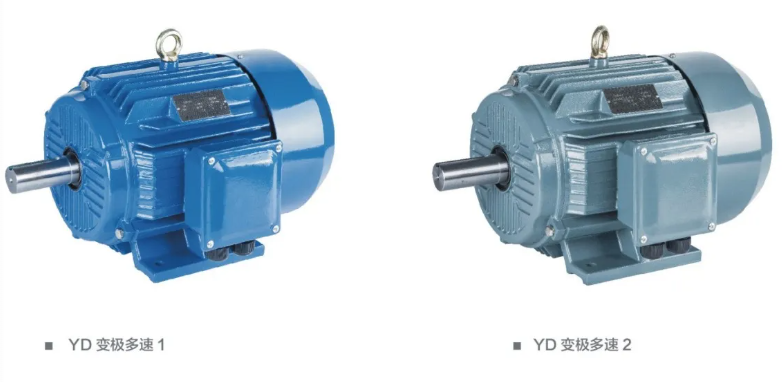

YD SERIES CHANGE-POLE MULTI-SPEED THREE-PHASE ASYNCHRONOUS MOTOR

Feature description
This series of motors is designed and manufactured by absorbing the advantages of similar international products. It complies with the relevant regulations in the IEC international standards and uses the single - winding pole - changing method to achieve speed transformation. It features a small size, light weight, low noise, good starting performance, reliable operation, and easy maintenance. The main technical indicators reach the international standards. This series of motors is widely used in various mechanical equipment requiring stepped speed regulation. Special - specification multi - speed motors can be designed and produced, such as YDT multi - speed three - phase asynchronous motors for fans and pump loads. The installation dimensions are the same as those of the GS(YE3) series.


Technical Parameters of YD Series Pole - Changing Multi - Speed Three - Phase Asynchronous Motors (I)

Model Power
(KW) 		Current
(A) 		Speed
(r/min) 		Efficiency
(%) 		Power Factor
(COS) 		Rated Torque Rated Current Rated Torque
YD90S- 8 0.35 1.6 680 56 0.60 1.5 5 1.8
6 0.45 1.4 930 70 0.72 1.5 6 1.8
YD90L 8

6 		0.45

0.65 		1.9

1.9 		680

930 		59

71 		0.60

0.73 		1.5

1.5 		5

6 		1.8

1.8
YD100L- 8 0.75 2.9 710 65 0.60 1.5 5 1.8
6 1.1 3.1 950 75 0.73 1.5 6 1.8
YD112M- 8

6 		1.3

1.8 		4.5

4.8 		710

950 		72

78 		0.61

0.73 		1.5

1.5 		5

6 		1.8

1.8
YD132S- 8 1.8 5.8 730 72 0.62 1.5 5 1.8
6 2.4 6.2 970 80 0.73 1.5 6 1.8
YD132M- 8

6 		2.6

3.7 		8.2

9.4 		730

970 		78

82 		0.62

0.73 		1.5

1.5 		5

6 		1.8

1.8
YD160M- 8 4.5 13.3 730 83 0.62 1.5 5 1.8
6 6 14.7 980 85 0.73 1.5 6 1.8
YD160L- 8

6 		6

8 		17.5

19.4 		730

980 		84

86 		0.62

0.73 		1.5

1.5 		5

6 		1.8

1.8
YD180M- 8

6 		7.5

10 		21.9

24.2 		730

980 		84

86 		0.62

0.73 		1.5

1.5 		5

6 		1.8

1.8
YD180L- 8

6 		9

12 		24.8

28.3 		730

980 		85

86 		0.65

0.75 		1.5

1.5 		5

6 		1.8

1.8
YD200L1- 8 12 32.5 730 86 0.65 1.5 5 1.8
6 17 39.1 980 87 0.76 1.5 6 1.8
YD200L2- 8

6 		15

20 		40.3

45.4 		730

980 		87

88 		0.65

0.76 		1.5

1.5 		5

6 		1.8

1.8
YD801- 4 0.45 1.4 1420 66 0.74 1.5 6.5 1.8
2 0.55 1.5 2860 65 0.85 1.6 7 1.8
YD802- 4

2 		0.55

0.75 		1.7

2.0 		1420

2860 		68

66 		0.74

0.85 		1.5

1.6 		6.5

7 		1.8

1.8
YD90S- 4 0.85 2.3 1430 74 0.77 1.5 6.5 1.8
2 1.1 2.8 2850 72 0.84 1.6 7 1.8
YD90L- 4

2 		1.3

1.8 		3.3

4.3 		1430

2850 		76

74 		0.78

0.84 		1.5

1.6 		6.5

7 		1.8

1.8


YD Series Pole-Changing Multi-Speed Three-Phase Asynchronous Motor Technical Parameters (Part 2)

Model Power
(KW) 		Current
(A) 		Speed
(r/min) 		Efficiency
(%) 		Power Factor
(COS) 		Rated Torque Rated Current Rated Torque
YD100L1- 4 2 4.8 1430 78 0.81 1.5 6.5 1.8
2 2.4 5.6 2850 76 0.86 1.6 7 1.8
YD100L2- 4 2.4 5.6 1430 79 0.83 1.5 6.5 1.8
2 3.0 6.7 2850 77 0.89 1.6 7 1.8
YD112M- 4 3.3 7.4 1450 81 0.83 1.5 6.5 1.8
2 4.0 8.6 2860 80 0.88 1.6 7 1.8
YD132S- 4 4.5 9.8 1450 83 0.84 1.5 6.5 1.8
2 5.5 11.9 2860 79 0.88 1.6 7 1.8
YD132M- 4 6.5 13.8 1450 84 0.85 1.5 6.5 1.8
2 8 17.1 2880 80 0.89 1.6 7 1.8
YD160M- 4 9 18.5 1460 87 0.85 1.5 6.5 1.8
2 11 22.9 2920 82 0.89 1.6 7 1.8
YD160L- 4 11 22.3 1460 87 0.86 1.5 6.5 1.8
2 14 28.8 2920 82 0.90 1.6 7 1.8
YD180M- 4 15 29.4 1470 89 0.87 1.5 6.5 1.8
2 18.5 36.7 2940 85 0.9 1.6 7 1.8
YD180L 4 18.5 35.9 1470 89 0.88 1.5 6.5 1.8
2 22 42.7 2940 86 0.91 1.6 7 1.8
YD200L- 4 26 49.9 1470 89 0.89 1.4 6.5 1.8
2 30 58.3 2950 85 0.92 1.4 7 1.8
YD225S- 4 32 60.7 1480 90 0.89 1.4 6.5 1.8
2 37 71.7 2960 86 0.92 1.4 7 1.8
YD225M- 4

2 		37 69.4 1480 91 0.89 1.4 6.5 1.8
45 86.4 2960 87 0.92 1.4 7 1.8
YD250M- 4 45 84.4 1480 91 0.89 1.4 6.5 1.8
2 52 103.2 2960 88 0.92 1.4 7 1.8
YD280S- 4 60 111.3 1480 91 0.90 1.4 6.5 1.8
2 72 135.1 2970 88 0.92 1.4 7 1.8
YD280M- 4 72 133.6 1480 91 0.90 1.4 6.5 1.8
2 82 152.2 2970 88 0.93 1.4 7 1.8
YD90S- 6 0.65 2.2 920 64 0.70 1.4 6 1.8
4 0.85 2.3 1420 70 0.73 1.3 6.5 1.8

Technical Parameters of YD Series Pole-Changing Multi-Speed Three-Phase Asynchronous Motors (III)

Model Power
(KW) 		Current
(A) 		Speed
(r/min) 		Efficiency
(%) 		Power Factor
(COS) 		Rated Torque Rated Current Rated Torque
YD90L- 6 0.85 2.8 930 66 0.70 1.4 6 1.8
4 1.1 3.0 1420 71 0.79 1.3 6.5 1.8
YD100L1- 6 1.3 3.8 940 74 0.70 1.4 6 1.8
4 1.8 4.4 1440 77 0.80 1.3 6.5 1.8
YD100L2- 6 1.5 4.3 940 75 0.70 1.4 6 1.8
4 2.2 5.4 1440 77 0.80 1.3 6.5 1.8
YD112M- 6 2.2 5.7 960 77 0.75 1.4 6 1.8
4 2.8 6.7 1440 77 0.82 1.3 6.5 1.8
YD132S- 6 3 7.7 960 79 0.75 1.4 6 1.8
4 4 9.5 1440 80 0.82 1.3 6.5 1.8
YD132M- 6 4 9.8 960 81 0.76 1.4 6 1.8
4 5.5 12.3 1440 80 0.85 1.3 6.5 1.8
YD160M- 6 6.5 15.1 970 84 0.78 1.4 6 1.8
4 8 17.4 1460 83 0.85 1.3 6.5 1.8
YD160L- 6 9 20.6 970 85 0.78 1.4 6 1.8
4 11 23.4 1460 84 0.85 1.3 6.5 1.8
YD180M- 6 11 25.9 980 85 0.78 1.4 6 1.8
4 14 29.8 1470 85 0.85 1.3 6.5 1.8
YD180L- 6 13 29.4 980 86 0.78 1.4 6 1.8
4 16 33.6 1470 85 0.85 1.3 6.5 1.8
YD200L 6 18.5 41.4 980 87 0.78 1.4 6.5 1.8
4 22 44.7 1460 87 0.86 1.3 7 1.8
YD225S- 6 22 44.2 980 88 0.86 1.4 6.5 1.8
4 28 56.2 1470 87 0.87 1.3 7 1.8
YD225M- 6 26 55.2 980 88 0.86 1.4 6.5 1.8
4 32 66.0 1470 87 0.890 1.3 7 1.8
YD250M- 6 32 62.1 980 90 0.87 1.4 6.5 1.8
4 42 74.7 1470 88 0.91 1.3 7 1.8
YD280S- 6 42 81.5 980 90 0.87 1.4 6.5 1.8
4 55 104.2 1470 89 0.90 1.3 7 1.8
YD280M- 6 55 106.7 990 90 0.87 1.4 6.5 1.8
4 67 138.1 1480 89 0.89 1.3 7 1.8


FTYP Series Motor Product Coding Rules
 The motor product models adopt a set of coding systems to facilitate your identification of all series of products.

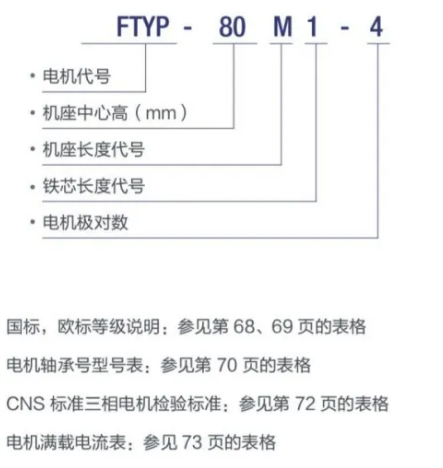

  • Motor Model Interpretation:

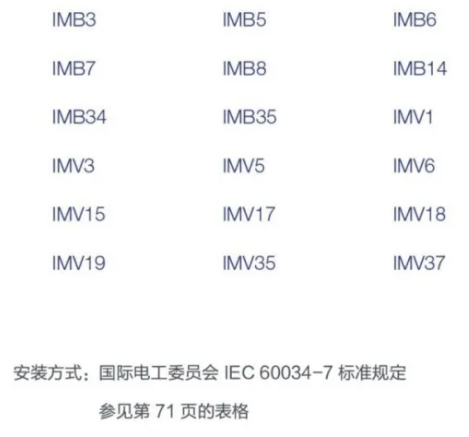

  • Installation Method:

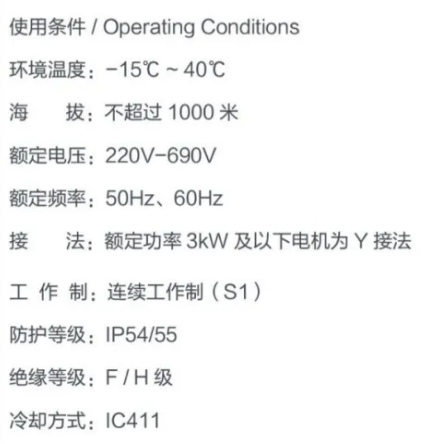

  • Operating Conditions:


  • Product Features:
