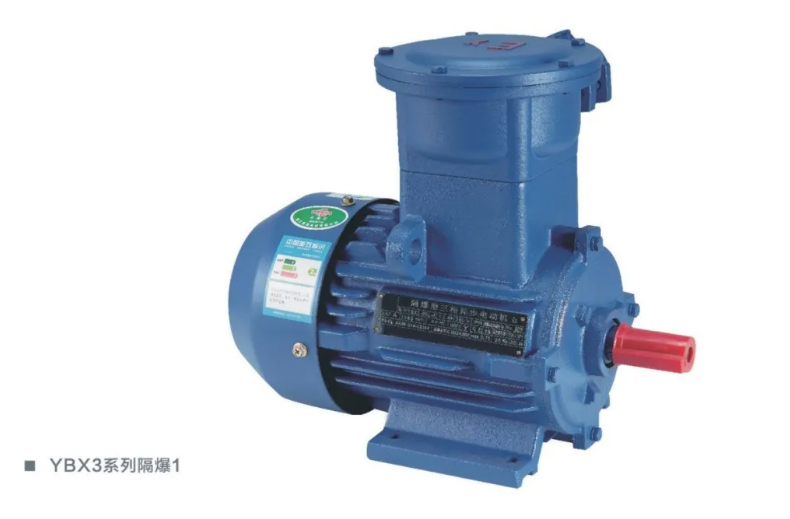

YBX3 SERIES FLAMEPROOF THREE-PHASE ASYNCHRONOUS MOTOR

Feature description:

The YBX3 series is a fully enclosed self - ventilated air - cooled squirrel - cage ultra - high - efficiency three - phase asynchronous motor newly developed by our company according to GB/T28575 - 2012. The company has obtained the ultra - high - efficiency energy - saving certification. The efficiency indicators of this series of motors reach the 2nd - level energy - efficiency grade in China's GB18613 - 2012 "Minimum allowable values of energy efficiency and energy - efficiency grades for small and medium three - phase asynchronous motors", and conform to the IE3 energy - efficiency grade in IEC60034 - 30. They are at the same level as the currently most advanced NEMA ultra - high - efficiency motors in the United States.
Compared with the YBX2 series, the YBX3 series ultra - high - efficiency motors are more energy - saving, low - carbon, and environmentally friendly. Their installation dimensions and power ratings are exactly the same as those of ordinary motors, conforming to the IEC60072 - 1 standard of the International Electrotechnical Commission. They can be directly replaced to achieve the purpose of energy and electricity conservation, which is convenient for market promotion. Motors with a center height of H160 and above can be equipped with a non - stop oil injection and drainage device, and there is a reserved space for installing thermistors and moisture - proof heating tapes, which is convenient for users to choose.
The power range of this series of motors is from 0.75kW to 375kW; the center height of the frame is from H80 to H355.

TYPE Output Volt Current Speed Eff Power
Factor 		Noise Vibration LRT LRA BDT
KW V A (r/min) (%) dB(A) (mm/s) (RLT) (RLT) (RLT)
380V 50Hz Synchronous Speed 3000r/min(2 Poles)
YBX3-63M1-2 0.18 380 0.52 2720 66.0 0.80 61 1.3 2.3 5.5 2.2
YBX3-63M2-2 0.25 380 0.69 2720 68.0 0.81 61 1.3 2.3 5.5 2.2
YBX3-71M1-2 0.37 380 0.99 2760 70.0 0.81 64 1.3 2.3 6.1 2.2
YBX3-712-2 0.55 380 1.38 2760 73.0 0.82 64 1.3 2.3 6.1 2.3
YBX3-80M1-2 0.75 660 1.02 2840 77.5 0.83 67 1.3 2.3 6.8 2.3
YBX3-80M2-2 1.1 660 1.4 2840 82.8 0.83 67 1.3 2.3 7.3 2.3
YBX3-90S-2 1.5 660 1.86 2850 84.1 0.84 72 1.3 2.3 7.6 2.3
YBX3-90L-2 2.2 660 2.64 2850 85.6 0.85 72 1.3 2.3 7.8 2.3
YBX3-100L-2 3 660 3.48 2870 86.7 0.87 76 1.3 2.3 8.1 2.3
YBX3-112M-2 4 380/660 7.9/4.6 2890 87.6 0.88 77 1.3 2.3 8.3 2.3
YBX3-132S1-2 5.5 380/660 10.7/6.2 2900 88.6 0.88 80 1.3 2.2 8.0 2.3
YBX3-132S2-2 7.5 380/660 14.3/8.3 2900 89.5 0.89 80 1.3 2.2 7.8 2.3
YBX3-160M1-2 11 380/660 20.7/12.0 2940 90.5 0.89 86 1.8 2.2 7.9 2.3
YBX3-160M2-2 15 380/660 28.0/16.2 2940 91.3 0.89 86 1.8 2.2 8.0 2.3
YBX3-160L-2 18.5 380/660 34.3/19.8 2940 91.8 0.89 86 1.8 2.2 8.1 2.3
YBX3-180M-2 22 380/660 40.3/23.5 2950 92.2 0.89 88 1.8 2.2 8.2 2.3
YBX3-200L1-2 30 380/660 55.0/31.8 2950 92.9 0.89 90 1.8 2.2 7.5 2.3
YBX3-200L2-2 37 380/660 67.6/39.1 2950 93.3 0.89 90 1.8 2.2 7.5 2.3
YBX3-225M-2 45 380/660 81.8/47.3 2960 93.7 0.89 92 1.8 2.2 7.6 2.3
YBX3-250M-2 55 380/660 100/58 2970 94.0 0.89 93 1.8 2.2 7.6 2.3
YBX3-280S-2 75 380/660 135/78.1 2970 94.6 0.89 94 1.8 2.0 6.9 2.3
YBX3-280M-2 90 380/660 162/94 2970 95.0 0.89 94 1.8 2.0 7.0 2.3
YBX3-315S-2 110 380/660 195/113 2980 95.0 0.9 96 2.3 2.0 7.1 2.2
YBX3-315M-2 132 380/660 233/135 2980 95.4 0.9 96 2.3 2.0 7.1 2.2
YBX3-315L1-2 160 380/660 279/161 2980 95.4 0.91 98 2.3 2.0 7.1 2.2
YBX3-315L2-2 200 380/660 350/202 2980 95.4 0.91 98 2.3 2.0 7.1 2.2
YBX3-355S1-2 185 380/660 323/187 2980 95.4 0.91 98 2.3 2.0 7.1 2.2
YBX3-355S2-2 200 380/660 346/200 2980 95.4 0.92 98 2.3 2.0 7.1 2.2
YBX3-355M1-2 220 380/660 380/220 2980 95.4 0.92 100 2.3 2.0 7.1 2.2
YBX3-355M2-2 250 380/660 431/249 2980 95.8 0.92 100 2.3 2.0 7.1 2.2
YBX3-355L1-2 280 380/660 482/279 2980 95.8 0.92 100 2.3 2.0 7.1 2.2
YBX3-355L2-2 315 380/660 542/314 2980 95.8 0.92 100 2.3 2.0 7.1 2.2
Synchronous Speed 1500(r/min)
YBX3-63M1-4 0.12 380 0.44 1340 58.0 0.72 52 1.3 2.3 4.4 2.2
YBX3-63M2-4 0.18 380 0.59 1340 63.0 0.73 52 1.3 2.3 4.4 2.2
YBX3-71M1-4 0.25 380 0.78 1350 66.0 0.74 55 1.3 2.3 5.5 2.2
YBX3-71M2-4 0.37 380 1.08 1350 69.0 0.75 55 1.3 2.3 5.5 2.2
YBX3-80M1-4 0.55 660 0.8 1390 80.7 0.75 58 1.3 2.3 6.3 2.3
YBX3-80M2-4 0.75 660 1.06 1390 82.3 0.75 58 1.3 2.3 6.5 2.3
YBX3-90S-4 1.1 660 1.53 1390 83.8 0.75 61 1.3 2.3 6.6 2.3
YBX3-90L-4 1.5 660 2.06 1390 85.0 0.75 61 1.3 2.3 6.9 2.3
YBX3-100L1-4 2.2 660 2.75 1420 86.4 0.81 64 1.3 2.3 7.5 2.3
YBX3-100L2-4 3 660 3.66 1420 87.4 0.82 64 1.3 2.3 7.6 2.3
YBX3-112M-4 4 380/660 8.4/4.9 1440 88.3 0.82 65 1.3 2.3 7.7 2.3
YBX3-132S-4 5.5 380/660 11.2/6.5 1450 89.2 0.82 71 1.3 2.0 7.5 2.3
YBX3-132M-4 7.5 380/660 15.1/8.7 1450 90.1 0.83 71 1.3 2.0 7.4 2.3
YBX3-160M-4 11 380/660 21.6/12.5 1460 91.0 0.85 75 1.8 2.2 7.5 2.3
YBX3-160L-4 15 380/660 28.8/16.7 1460 91.8 0.86 75 1.8 2.2 7.5 2.3
YBX3-180M-4 18.5 380/660 35.4/20.5 1470 92.2 0.86 76 1.8 2.2 7.7 2.3

TYPE Output Volt Current Speed Eff Power
Factor 		Noise Vibration LRT LRA BDT
KW V A (r/min) (%) dB(A) (mm/s) (RLT) (RLD) (RLD)
Synchronous Speed 1500(r/min)
YBX3-180L-4 22 380/660 41.9/24.3 1470 92.6 0.86 76 1.8 2.2 7.8 2.3
YBX3-200L-4 30 380/660 56.8/32.8 1470 93.2 0.86 79 1.8 2.2 7.2 2.3
YBX3-225S-4 37 380/660 69.6/40.3 1480 93.6 0.86 81 1.8 2.2 7.3 2.3
YBX3-225M-4 45 380/660 84.5/48.8 1480 93.9 0.86 81 1.8 2.2 7.4 2.3
YBX3-250M-4 55 380/660 103/60 1480 94.2 0.86 83 1.8 2.2 6.7 2.3
YBX3-280S-4 75 380/660 137/79 1480 94.7 0.88 86 1.8 2.2 6.9 2.3
YBX3-280M-4 90 380/660 164/95 1480 95.0 0.88 86 1.8 2.2 6.9 2.3
YBX3-315S-4 110 380/660 199/115 1485 95.4 0.88 93 2.3 2.2 6.9 2.2
YBX3-315M-4 132 380/660 238/138 1485 95.4 0.88 93 2.3 2.2 6.9 2.2
YBX3-315L1-4 160 380/660 286/165 1485 95.4 0.89 94 2.3 2.2 6.9 2.2
YBX3-315L2-4 200 380/660 357/206 1485 95.4 0.89 94 2.3 2.2 6.9 2.2
YBX3-355S1-4 185 380/660 331/191 1488 95.4 0.89 94 2.3 2.2 6.9 2.2
YBX3-355S2-4 200 380/660 357/206 1488 95.4 0.89 94 2.3 2.2 6.9 2.2
YBX3-355M1-4 220 380/660 389/225 1488 95.4 0.90 95 2.3 2.2 6.9 2.2
YBX3-355M2-4 250 380/660 440/254 1488 95.8 0.90 95 2.3 2.2 6.9 2.2
YBX3-355L1-4 280 380/660 493/285 1488 95.8 0.90 95 2.3 2.2 6.9 2.2
YBX3-355L2-4 315 380/660 555/320 1488 95.8 0.90 95 2.3 2.2 6.9 2.2
Synchronous Speed 1000r/min(6 Poles)
YBX3-71M1-6 0.18 380 0.67 880 62.0 0.66 52 1.3 1.9 4.0 2.0
YBX3-71M2-6 0.25 380 0.88 880 63.0 0.68 52 1.3 1.9 4.0 2.0
YBX3-80M1-6 0.37 660 0.73 890 63.3 0.70 54 1.3 1.9 4.7 2.0
YBX3-80M2-6 0.55 660 0.89 890 75.4 0.72 54 1.3 1.9 4.7 2.1
YBX3-90S-6 0.75 660 1.17 910 77.7 0.72 57 1.3 2.1 5.8 2.1
YBX3-9OL-6 1.1 660 1.65 910 79.9 0.73 57 1.3 2.1 5.9 2.1
YBX3-100L-6 1.5 660 2.18 930 81.5 0.74 61 1.3 2.1 6.0 2.1
YBX3-112M-6 2.2 380/660 5.4/3.2 940 83.4 0.74 65 1.3 2.1 6.0 2.1
YBX3-132S-6 3 380/660 7.3/4.2 970 84.9 0.74 69 1.3 2.0 6.2 2.1
YBX3-132M1-6 4 380/660 9.5/5.5 970 86.1 0.74 69 1.3 2.0 6.8 2.1
YBX3-132M2-6 5.5 380/660 12.7/7.4 970 87.4 0.75 69 1.3 2.0 7.1 2.1
YBX3-160M-6 7.5 380/660 16.4/9.5 970 89.0 0.78 73 1.8 2.1 6.7 2.1
YBX3-160L-6 11 380/660 23.5/13.6 970 90.0 0.79 73 1.8 2.1 6.9 2.1
YBX3-180L-6 15 380/660 30.9/17.9 980 91.0 0.81 73 1.8 2.0 7.2 2.1
YBX3-200L1-6 18.5 380/660 37.9/21.9 980 91.5 0.81 76 1.8 2.1 7.2 2.1
YBX3-200L2-6 22 380/660 44.2/25.6 980 92.0 0.82 76 1.8 2.1 7.3 2.1
YBX3-225M-6 30 380/660 60.7/35.1 980 92.5 0.81 76 1.8 2.0 7.1 2.1
YBX3-250M-6 37 380/660 72/42 980 93.0 0.84 78 1.8 2.1 7.1 2.1
YBX3-280S-6 45 380/660 85/49 990 93.5 0.86 80 1.8 2.1 7.2 2.0
YBX3-280M-6 55 380/660 104/60 990 93.8 0.86 80 1.8 2.1 7.2 2.0
YBX3-315S-6 75 380/660 142/82 990 94.2 0.85 85 2.3 2.0 6.7 2.0
YBX3-315M-6 90 380/660 168/97 990 94.5 0.86 85 2.3 2.0 6.7 2.0
YBX3-315L1-6 110 380/660 204/118 990 95.0 0.86 85 2.3 2.0 6.7 2.0
YBX3-315L2-6 132 380/660 242/140 990 95.0 0.87 85 2.3 2.0 6.7 2.0
YBX3-355S-6 160 380/660 297/172 985 93.0 0.88 92 2.3 2.0 6.7 2.0
YBX3-355M1-6 185 380/660 343/198 985 93.0 0.88 92 2.3 2.0 6.7 2.0
YBX3-355M2-6 200 380/660 371/214 985 93.0 0.88 92 2.3 2.0 6.7 2.0
YBX3-355L1-6 220 380/660 408/235 985 93.0 0.88 92 2.3 2.0 6.7 2.0
YBX3-355L2-6 250 380/660 464/268 985 93.0 0.88 92 2.3 2.0 6.7 2.0

TYPE Output Volt Current Speed Eff Power
Factor 		Noise Vibration LRT LRA BDT
KW V A (r/min) (%) dB(A) (mm/s) (RLT) (RLT) (RLT)
Synchronous Speed 750(r/min)
YBX3-80M1-8 0.18 660 0.5 650 52.0 0.61 52 1.3 1.8 3.3 1.9
YBX3-80M2-8 0.25 660 0.65 650 55.0 0.61 52 1.3 1.8 3.3 1.9
YBX3-90S-8 0.37 660 0.83 670 63.0 0.62 56 1.3 1.8 4.0 2.0
YBX3-90L-8 0.55 660 1.19 670 64.0 0.63 56 1.3 1.8 4.0 2.0
YBX3-10OL1-8 0.75 660 1.36 690 71.0 0.68 59 1.3 1.8 4.0 2.0
YBX3-100L2-8 1.1 660 1.91 690 73.0 0.69 59 1.3 1.8 5.0 2.0
YBX3-112M-8 1.5 380/660 4.4/2.5 690 75.0 0.69 61 1.3 1.8 5.0 2.0
YBX3-132S-8 2.2 380/660 5.78/3.34 710 79.0 0.73 64 1.3 1.8 6.0 2.0
YBX3-132M-8 3 380/660 7.69/4.44 710 81.0 0.73 64 1.3 1.8 6.0 2.0
YBX3-160M1-8 4 380/660 9.7/5.6 720 85.5 0.73 68 1.8 1.9 6.0 2.0
YBX3-160M2-8 5.5 380/660 13.0/7.5 720 85.5 0.75 68 1.8 1.9 6.0 2.0
YBX3-160L-8 7.5 380/660 16.9/9.8 720 88.5 0.76 68 1.8 1.9 6.0 2.0
YBX3-180L-8 11 380/660 24.8/14.4 720 88.5 0.76 70 1.8 2.0 6.5 2.0
YBX3-200L-8 15 380/660 33.6/19.4 730 89.0 0.76 73 1.8 2.0 6.6 2.0
YBX3-225S-8 18.5 380/660 40.2/23.3 740 89.5 0.78 73 1.8 1.9 6.6 2.0
YBX3-225M-8 22 380/660 47.0/27.2 740 91.0 0.78 73 1.8 1.9 6.6 2.0
YBX3-250M-8 30 380/660 64/37 740 91.0 0.79 75 1.8 1.9 6.5 2.0
YBX3-280S-8 37 380/660 78/45 740 91.5 0.79 76 1.8 1.9 6.6 2.0
YBX3-280M-8 45 380/660 95/55 740 92.0 0.79 76 1.8 1.9 6.6 2.0
YBX3-315S-8 55 380/660 111/64 740 93.0 0.81 82 2.3 1.8 6.6 2.0
YBX3-315M-8 75 380/660 151/87 740 93.0 0.81 82 2.3 1.8 6.2 2.0
YBX3-315L1-8 90 380/660 180/104 740 93.6 0.82 82 2.3 1.8 6.4 2.0
YBX3-315L2-8 110 380/660 217/126 740 93.6 0.82 82 2.3 1.8 6.4 2.0
YBX3-355S-8 132 380/660 260/150 740 94.1 0.82 90 2.3 1.8 6.4 2.0
YBX3-355M-8 160 380/660 315/182 740 94.1 0.82 90 2.3 1.8 6.4 2.0
YBX3-355L1-8 185 380/660 364/210 740 94.1 0.82 90 2.3 1.8 6.4 2.0
YBX3-355L2-8 200 380/660 387/224 740 94.5 0.83 90 2.3 1.8 6.4 2.0
Synchronous Speed 600(r/min)
YBX3-315S-10 4560 380/660 99/58 585 91.5 0.75 82 2.3 1.5 6.2 2.0
YBX3-315M-10 5575 380/660 120/70 585 92.0 0.75 82 2.3 1.5 6.2 2.0
YBX3-315L1-10 75100 380/660 162/94 585 92.5 0.76 82 2.3 1.5 5.8 2.0
YBX3-315L2-10 90125 380/660 191/110 585 93.0 0.77 82 2.3 1.5 5.9 2.0
YBX3-335S-10 90125 380/660 191/110 585 93.2 0.77 82 2.3 1.5 6.0 2.0
YBX3-355M1-10 110154 380/660 230/133 585 93.2 0.78 90 2.3 1.3 6.0 2.0
YBX3-355M2-10 132184 380/660 275/159 585 93.5 0.78 90 2.3 1.3 6.0 2.0
YBX3-355L1-10 160222 380/660 333/192 585 93.5 0.78 90 2.3 1.3 6.0 2.0
YBX3-355L2-10 185258 380/660 385/223 585 93.5 0.78 90 2.3 1.3 6.0 2.0

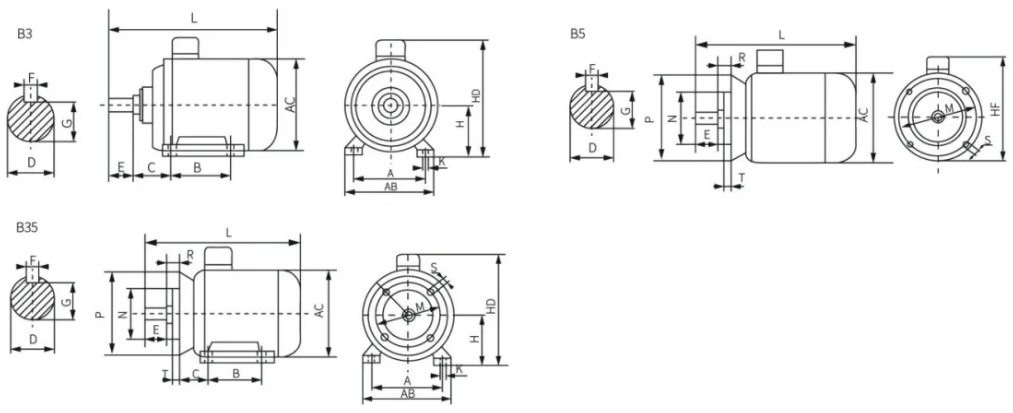

YBX3 series motor installation size and external size table
Frame size Installation Size (mm) Overall Dimension (mm)
A B C D E F G H K M N P R S T AB AC AD HD HF L
63 100 80 40 11 23 4 8.5 63 7 115 95 140 0 10 3 135 135 70 180 130 225
71 112 90 45 14 30 5 11 71 7 130 110 160 0 10 3.5 150 150 80 195 145 250
80 125 100 50 19 40 6 15.5 80 10 165 130 200 0 12 3.5 165 165 145 214 185 295
90S 140 100 56 24 50 8 20 90 10 165 130 200 0 12 3.5 180 180 155 250 195 315
90L 140 125 56 24 50 8 20 90 10 165 130 200 0 12 3.5 180 180 155 250 195 340
100L 160 140 63 28 60 8 24 100 12 215 180 250 0 15 4 205 205 180 270 245 385
112M 190 140 70 28 60 8 24 112 12 215 180 250 0 15 4 230 230 190 300 265 400
132S 216 140 89 38 80 10 33 132 12 265 230 300 0 15 4 270 270 210 345 315 470
132M 216 178 89 38 80 10 33 132 12 265 230 300 0 15 4 270 270 210 345 315 510
160M 254 210 108 42 110 12 3.7 160 15 300 250 350 0 19 5 320 320 255 420 385 615
160L 254 254 108 42 110 12 37 160 15 300 250 350 0 19 5 320 320 255 420 385 670
180M 279 241 121 48 110 14 42.5 180 15 300 250 350 0 19 5 355 355 280 455 430 700
180L 279 279 121 48 110 14 42.5 180 15 300 250 350 0 19 5 355 355 280 455 430 740
200L 318 305 133 55 110 16 49 200 19 350 300 400 0 19 5 375 375 305 545 480 770
225S 356 286 149 60 110 18 53 225 19 450 350 450 0 19 5 435 435 335 555 535 815
225M-2 356 311 149 55 110 16 49 225 19 450 350 450 0 19 5 435 435 335 555 535 820
225M-4,6,8 356 311 149 60 140 18 53 225 19 450 350 450 0 19 5 435 435 335 555 535 845
250M-2 406 349 168 60 140 18 53 250 24 500 450 550 0 19 5 490 490 370 615 / 910
250M-4,6.8 406 349 168 65 140 18 58 250 24 500 450 550 0 19 5 490 490 370 615 910
280S-2 457 368 190 65 140 18 58 280 24 500 450 550 0 19 5 550 550 410 680 985
280S-4,6,8 457 368 190 75 140 20 67.5 280 24 500 450 550 0 19 5 550 550 410 680 985
280M-2 457 419 190 65 140 18 58 280 24 500 450 550 0 19 5 550 550 410 680 1035
280M-4,6,8 457 419 190 75 140 20 67.5 280 24 500 450 550 0 19 5 550 550 410 680 1035
315S-2 508 406 216 65 140 18 58 315 28 600 550 660 0 24 6 635 635 530 845 1160
315S-4,6,8,10 508 406 216 80 170 22 71 315 28 600 550 660 0 24 6 635 635 530 845 1270
315M-2 508 457 216 65 140 18 58 315 28 600 550 660 0 24 6 635 635 530 845 1190
315M-4,6,8,10 508 457 216 80 170 22 71 315 28 600 550 660 0 24 6 635 635 530 845 1300
315L-2 508 508 216 65 140 18 58 315 28 600 550 660 0 24 6 635 635 530 845 1190
315L-4,6,8,10 508 508 216 80 170 22 71 315 28 600 550 660 0 24 6 635 635 530 845 1300
355M-2 610 560 254 75 140 20 67.5 355 28 740 680 800 0 24 6 730 730 655 1010 1500
355M-4,6,8,10 610 560 254 95 170 25 86 355 28 740 680 800 0 24 6 730 730 655 1010 1530
355L-2 610 630 254 75 140 20 67.5 355 28 740 680 800 0 24 6 730 730 655 1010 1500
355L-4,6,8,10 610 630 254 95 170 25 86 355 28 740 680 800 0 24 6 730 730 655 1010 1530

About UsNewsContact Us
Su ICP 2025168860-1

COPYRIGHT © Wuxi Morinda Electric Motor Manufacturing Co., Ltd., the copyright belongs to the company, without authorization, any other company or individual is not allowed to copy, plagiarize!
